SKU: K005
K005 Metric Grub Screw Type Bearing Insert with 25mm Bore 47mm Outside Dia
K005 Metric Grub Screw Type Bearing Insert with 25mm Bore 47mm Outside Dia
Regular price
$14.05
ex VAT
Regular price
Sale price
$14.05
ex VAT
In stock
Price Break
10+
$12.50
19+
$11.80
29+
$11.66
39+
$11.52
49+
$11.38
74+
$11.24
99+
$10.54
199+
$10.40
249+
$10.26
499+
$10.12
999+
$9.84
Couldn't load pickup availability
Description
Description
|

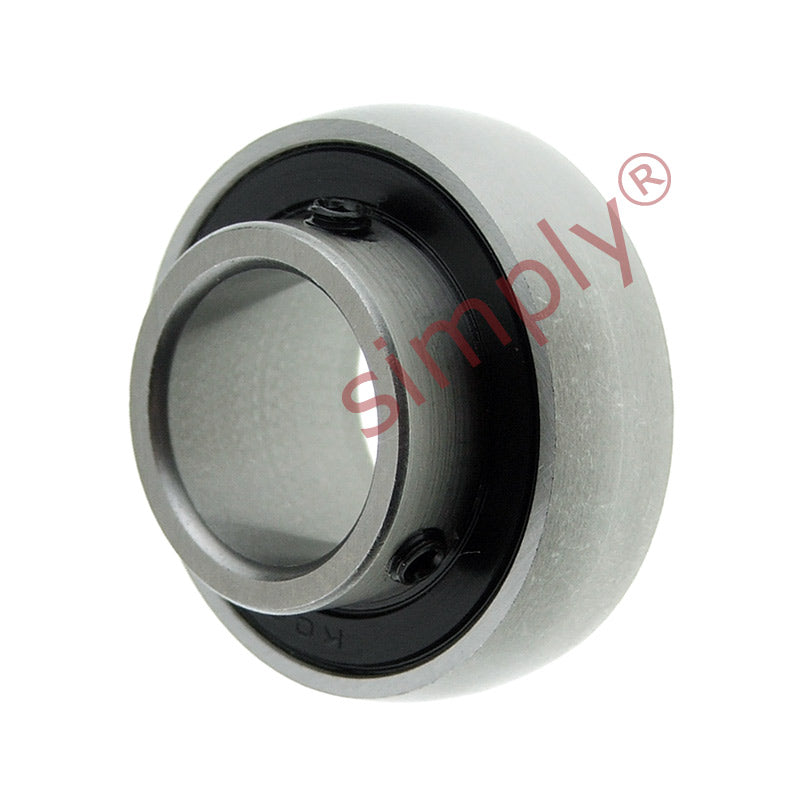

Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Style:
- K
- Type:
- Spherical Outer
Technical
Technical
| Inside Diameter d | 25mm |
|---|---|
| Outside Diameter D | 47mm |
| Bi | 22.5mm |
| Be | 12mm |
| r | 1mm |
| n | 6mm |
| G | 4.5mm |
| W | 31.7mm |
| Grub screw | M5X0.5 |
| Dynamic load | 10094N ~ 1029.302 kgf |
| Static load | 5831N ~ 594.597 kgf |
| Weight | 0.11 kg |
