SKU: K004

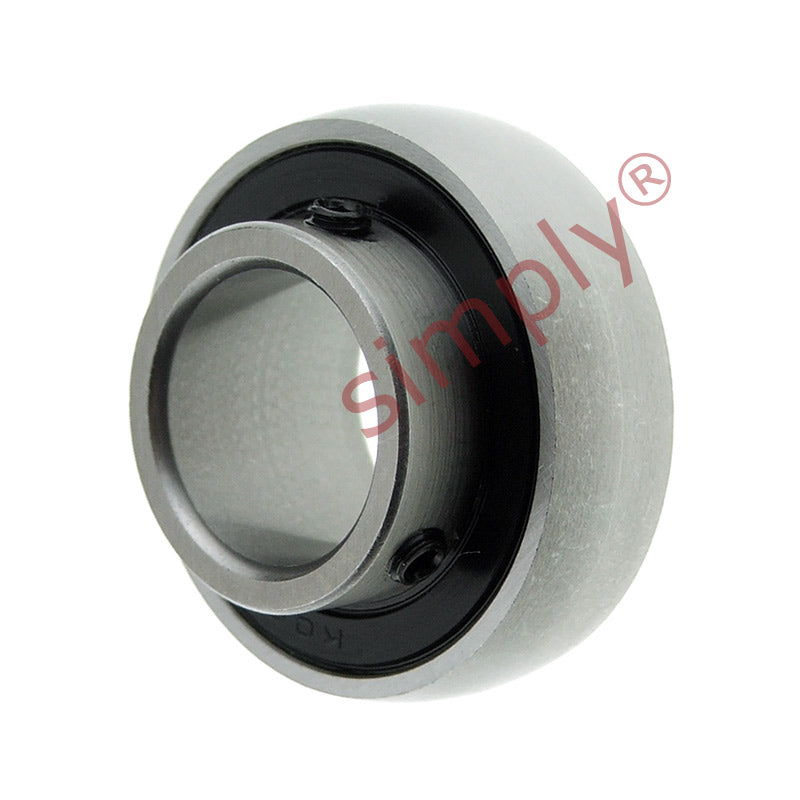

K004 Metric Grub Screw Type Bearing Insert with 20mm Bore 42mm Outside Dia
K004 Metric Grub Screw Type Bearing Insert with 20mm Bore 42mm Outside Dia
Regular price
$12.97
ex VAT
Regular price
Sale price
$12.97
ex VAT
In stock
Price Break
3+
$6.12
4+
$5.78
9+
$5.71
19+
$5.64
49+
$5.57
99+
$5.50
499+
$5.16
999+
$5.09
1999+
$5.02
2999+
$4.95
4999+
$4.82
Description
Description
|
Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Style:
- K
Technical
Technical
| Inside Diameter d | 20mm |
|---|---|
| Outside Diameter D | 42mm |
| Bi | 21mm |
| Be | 12mm |
| r | 1mm |
| n | 6mm |
| G | 4mm |
| W | 27mm |
| Grub screw | M5X0.5 |
| Dynamic load | 9359N ~ 954.352 kgf |
| Static load | 5047N ~ 514.651 kgf |
| Weight | 0.09 kg |
