SKU: JSC239MS-JUB

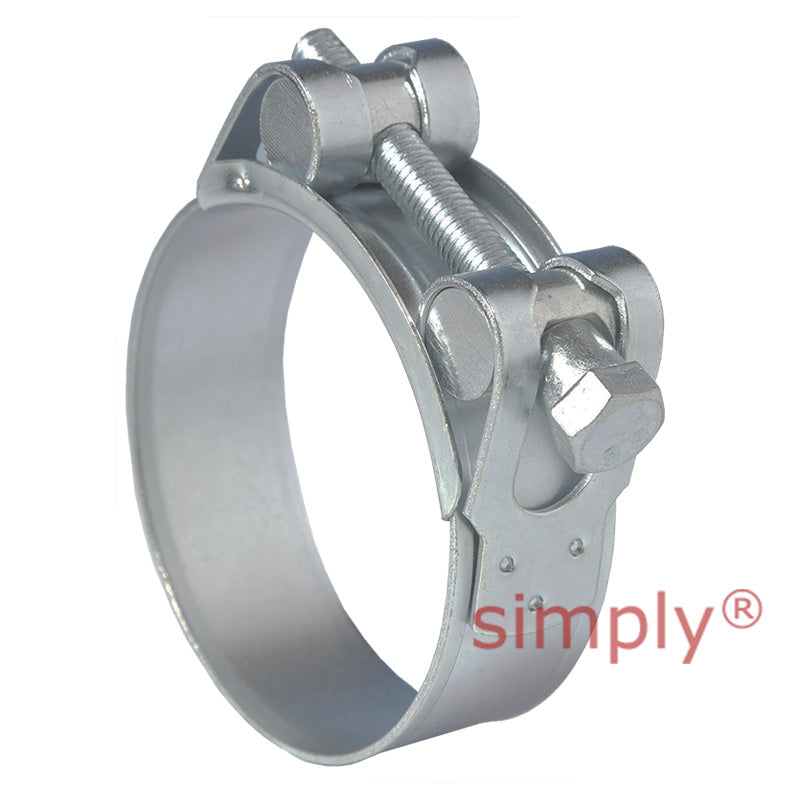

JSC239MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 227mm-239mm Band Width 25mm
JSC239MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 227mm-239mm Band Width 25mm
Regular price
$14.64
ex VAT
Regular price
Sale price
$14.64
ex VAT
In stock
Price Break
5+
$14.49
10+
$13.91
20+
$13.62
50+
$13.18
100+
$12.88
500+
$12.15
1000+
$10.25
Couldn't load pickup availability
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 227mm
- Max Adjustment Range:
- 239mm
Technical
Technical
| Adjustment Range | 227mm - 239mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.8mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
