SKU: JSC187MS-JUB

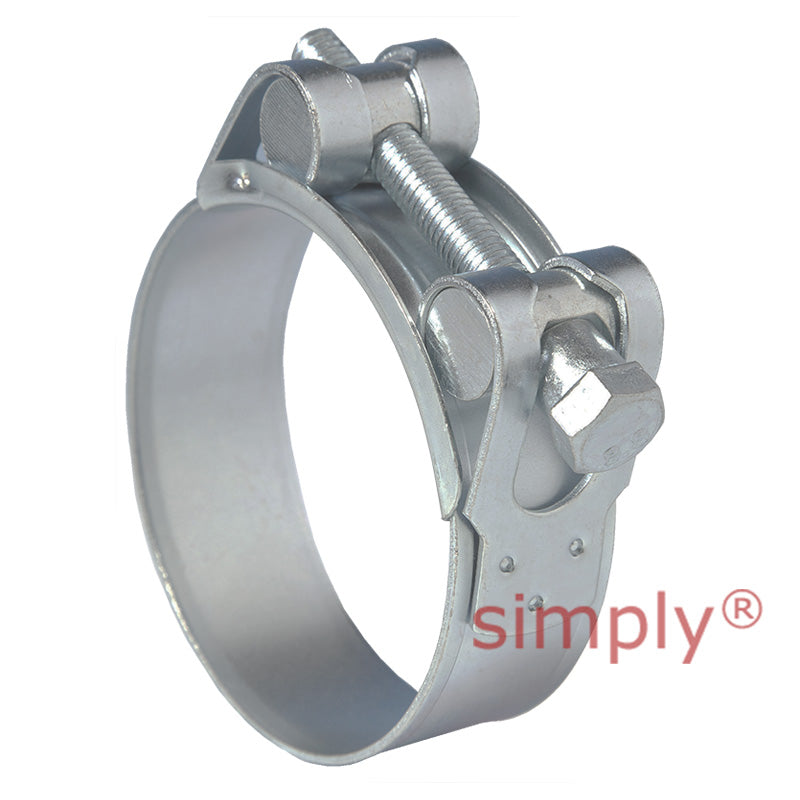

JSC187MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 175mm-187mm Band Width 25mm
JSC187MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 175mm-187mm Band Width 25mm
Regular price
$10.40
ex VAT
Regular price
Sale price
$10.40
ex VAT
In stock
Price Break
3+
$5.46
5+
$5.24
9+
$5.13
19+
$4.97
49+
$4.86
74+
$4.58
99+
$3.86
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 175mm
- Max Adjustment Range:
- 187mm
Technical
Technical
| Adjustment Range | 175mm - 187mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.8mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
