SKU: JSC139SS316-JUB

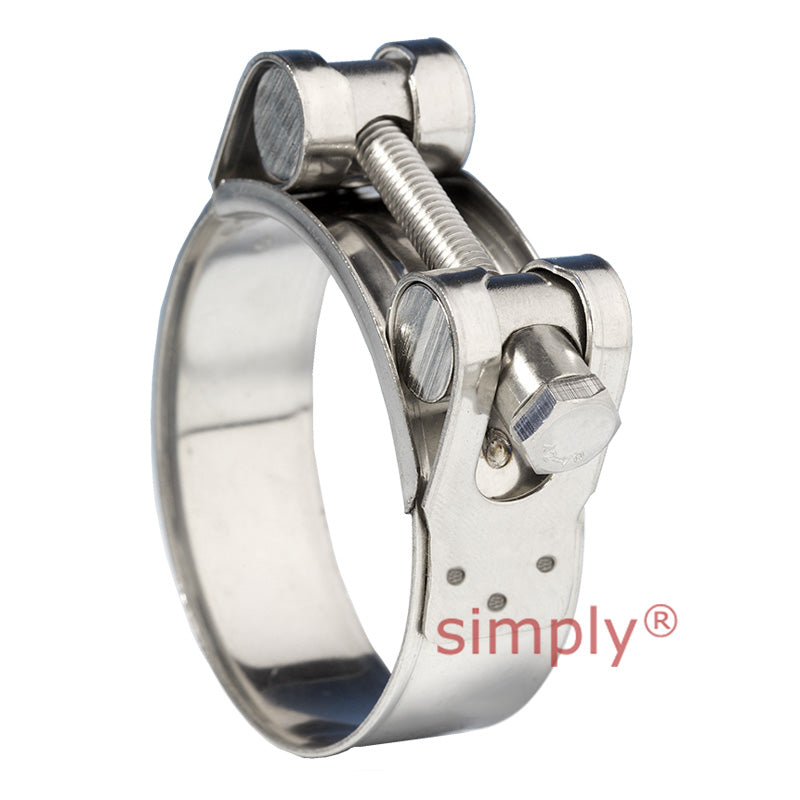

JSC139SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 131mm-139mm Band Width 25mm
JSC139SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 131mm-139mm Band Width 25mm
Regular price
$41.72
ex VAT
Regular price
Sale price
$41.72
ex VAT
Low stock
Price Break
3+
$21.92
5+
$21.03
9+
$20.59
19+
$19.93
49+
$19.48
74+
$18.38
99+
$15.50
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Description
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 131mm
- Max Adjustment Range:
- 139mm
Technical
Technical
| Adjustment Range | 131mm - 139mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.2mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
