SKU: JSC079SS-JUB

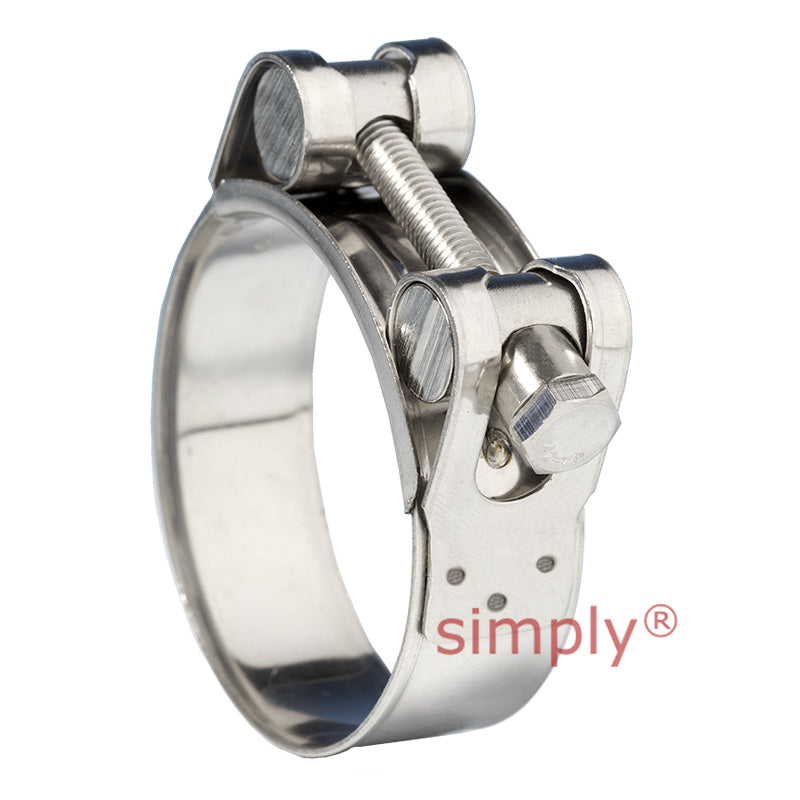

JSC079SS 304 Stainless Steel Jubilee Superclamp Clip Adjustment Range 74mm-79mm Band Width 25mm
JSC079SS 304 Stainless Steel Jubilee Superclamp Clip Adjustment Range 74mm-79mm Band Width 25mm
Regular price
$18.77
ex VAT
Regular price
Sale price
$18.77
ex VAT
In stock
Price Break
3+
$9.86
5+
$9.46
9+
$9.26
19+
$8.96
49+
$8.76
74+
$8.27
99+
$6.97
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Description
Description
304 Stainless Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 74mm
- Max Adjustment Range:
- 79mm
Technical
Technical
| Adjustment Range | 74mm - 79mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.2mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
