SKU: JSC022SS316-JUB

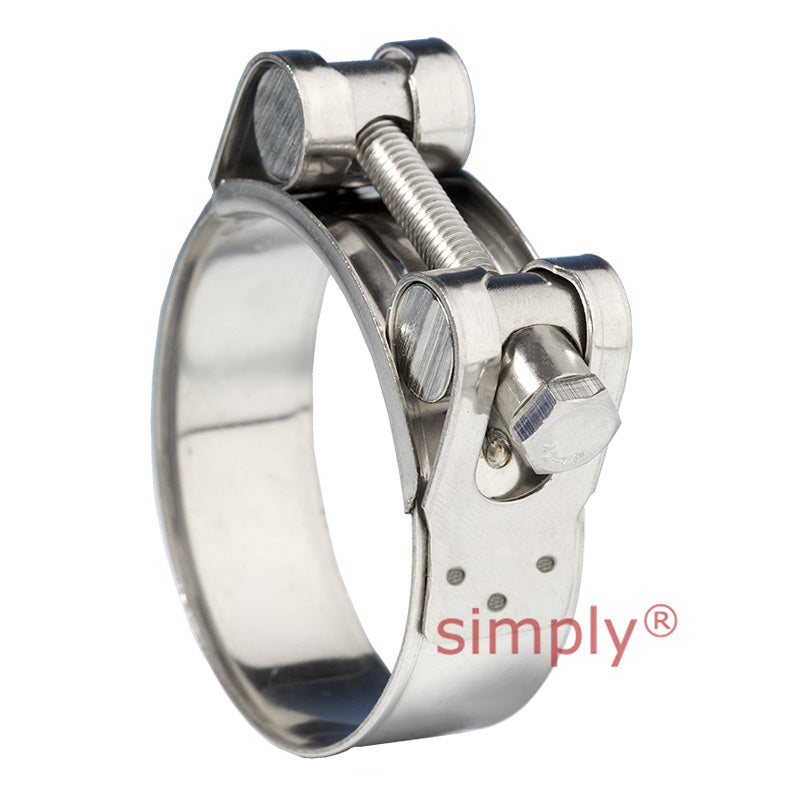

JSC022SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 20mm-22mm Band Width 18mm
JSC022SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 20mm-22mm Band Width 18mm
Regular price
$14.57
ex VAT
Regular price
Sale price
$14.57
ex VAT
In stock
Price Break
3+
$7.65
5+
$7.34
9+
$7.19
19+
$6.96
49+
$6.80
74+
$6.42
99+
$5.41
199+
$5.41
249+
$5.41
499+
$5.41
999+
$5.41
Description
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 18mm
- Min Adjustment Range:
- 20mm
- Max Adjustment Range:
- 22mm
Technical
Technical
| Adjustment Range | 20mm - 22mm |
|---|---|
| Band Width (+/- 0.1) | 18mm |
| Band Thickness (+/- 0.1) | 0.6mm |
| Recommended Torque | 4.5Nm |
| Maximum Torque | 6Nm |
| Screw Head | 8mm |
