SKU: HYDRA-SCHP-8-12-SNR

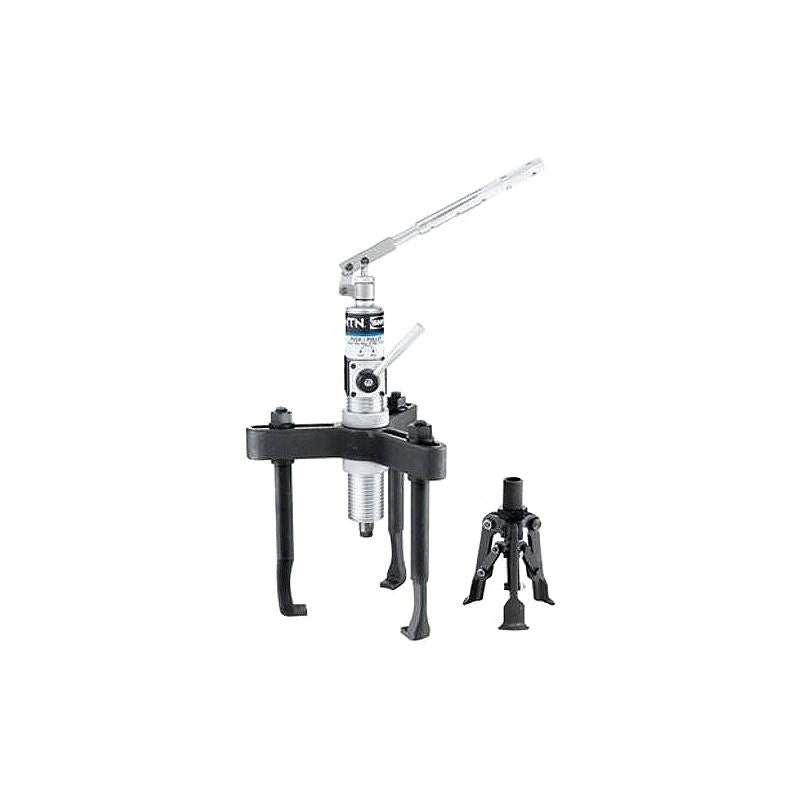

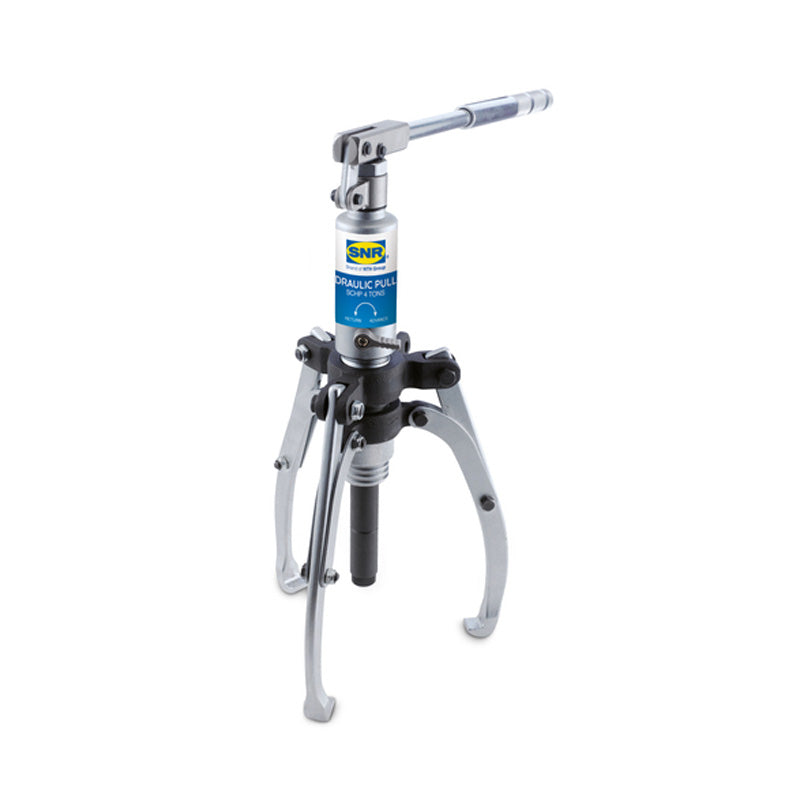

SNR SCHP 8-12 Self-Centring Hydraulic Push and Puller - 8000kg to 120000 kg - Allow 2-3 Days
SNR SCHP 8-12 Self-Centring Hydraulic Push and Puller - 8000kg to 120000 kg - Allow 2-3 Days
Regular price
$5,192.71
ex VAT
Regular price
Sale price
$5,192.71
ex VAT
Allow 2-3 Days
In stock
Price Break
10+
$4,621.51
19+
$4,361.88
29+
$4,309.95
39+
$4,258.02
49+
$4,206.10
74+
$4,154.17
99+
$3,894.53
199+
$3,842.61
249+
$3,790.68
499+
$3,738.75
999+
$3,634.90
Couldn't load pickup availability
Share this product
Description
Description
SNR SCHP Hydraulic Push and Puller: This is a self-centering push and puller for the safe and effective mounting and dismounting of applications and parts.
Benefits: High-quality and Multi-functional.
- Brand / Quality:
- SNR - High Quality
Technical
Technical

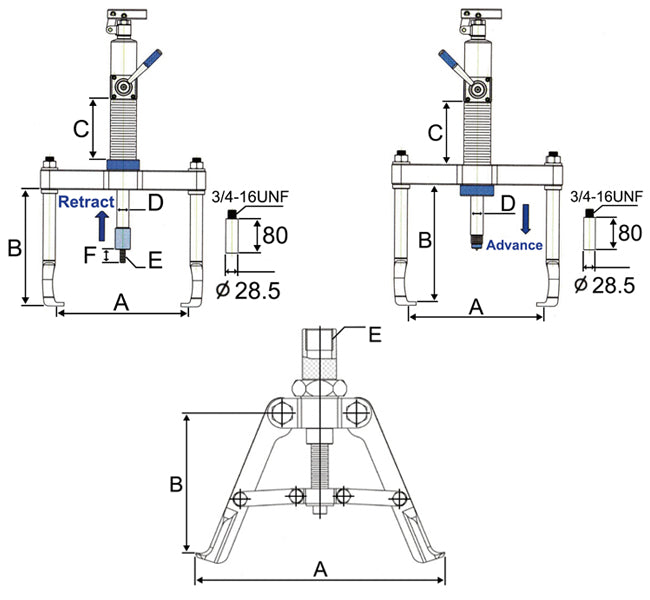

| --- | Thrust |
|---|---|
| Capacity | 8000kg |
| Max Reach | 130mm |
| Min Spread A | 44mm |
| Max Spread A | 280mm |
| B | 270mm |
| C | 140mm |
| D | 28mm |
| E | M12-P1.75 |
| F | 30mm |
| --- | Extraction (External) |
| Capacity | 12000kg |
| Max Reach | 240mm |
| Min Spread A | 85mm |
| Max Spread A | 300mm |
| B | 260mm |
| C | 140mm |
| D | 28mm |
| --- | Extraction (Internal) |
| Capacity | 8000kg |
| Max Reach | 105mm |
| Min Spread A | 110mm |
| Max Spread A | 210mm |
| B | 130mm - 150mm |
| E | 1 inch - 12UNF |
| --- | Weight |
| Mass | 19.5kg |
