SKU: HN1412-EU

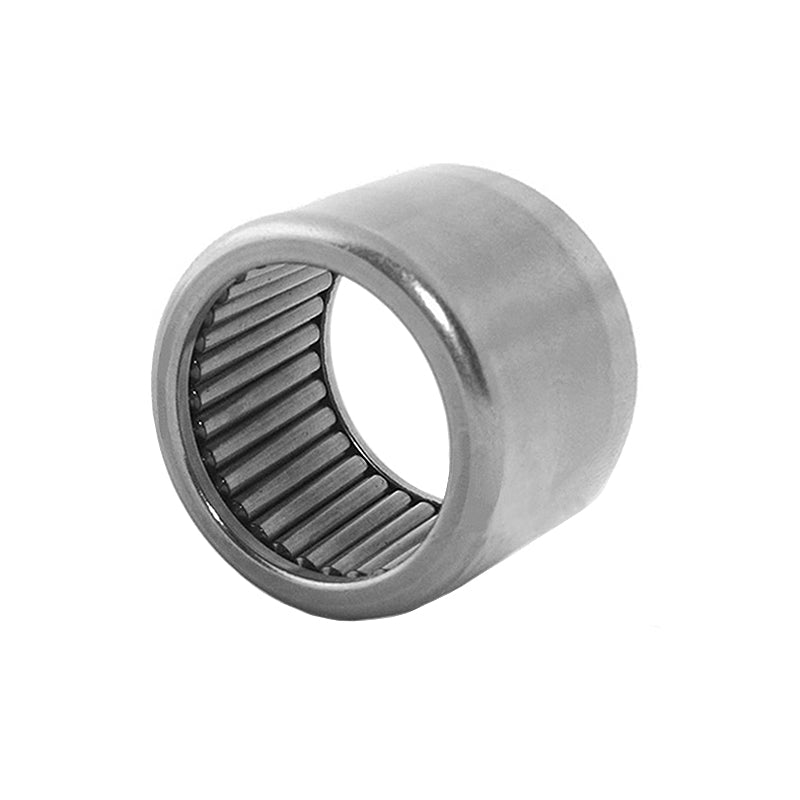

Budget HN1412 Open Ended Drawn Cup Type Full Complement Needle Roller Bearing 14x20x12mm
Budget HN1412 Open Ended Drawn Cup Type Full Complement Needle Roller Bearing 14x20x12mm
Regular price
$13.51
ex VAT
Regular price
Sale price
$13.51
ex VAT
Equivalent to: HJ1412 HK1412V DL1412
In stock
Price Break
10+
$6.38
19+
$6.03
29+
$5.95
39+
$5.88
49+
$5.81
74+
$5.74
99+
$5.38
199+
$5.31
249+
$5.24
499+
$5.16
999+
$5.02
Description
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
Equivalent: HJ1412 HK1412V DL1412
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 20mm
- Width:
- 12mm
Technical
Technical
| Bore | 14mm |
|---|---|
| Outside diameter | 20mm |
| Width | 12mm |
| Radius r min | 0.8mm |
| Dynamic Load (kN) | 8.8 |
| Static Load (kN) | 14.08 |
| Speed rpm | 7500 |
| Weight | 0.012 kg |
