SKU: HN101610-EU

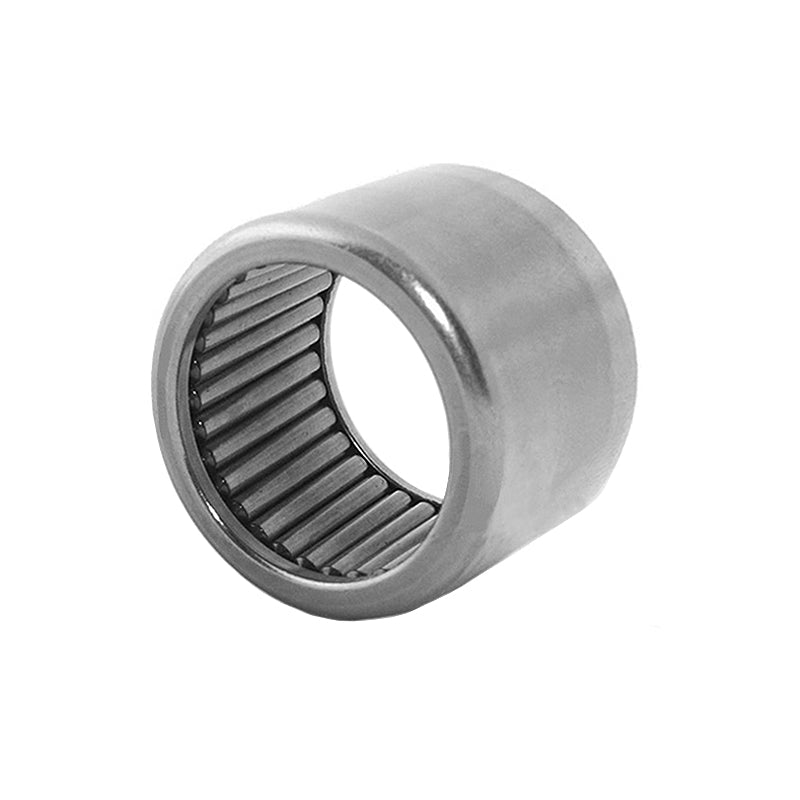

Budget HN101610 Open Ended Drawn Cup Type Full Complement Needle Roller Bearing 10x16x10mm
Budget HN101610 Open Ended Drawn Cup Type Full Complement Needle Roller Bearing 10x16x10mm
Regular price
$13.91
ex VAT
Regular price
Sale price
$13.91
ex VAT
Equivalent to: HJ1010 HK1010V DL1010
In stock
Price Break
10+
$6.57
19+
$6.20
29+
$6.12
39+
$6.05
49+
$5.98
74+
$5.90
99+
$5.53
199+
$5.46
249+
$5.38
499+
$5.31
999+
$5.16
Description
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 16mm
- Width:
- 10mm
Technical
Technical
| Bore | 10mm |
|---|---|
| Outside diameter | 16mm |
| Width | 10mm |
| Radius r min | 0.4mm |
| Dynamic Load (kN) | 5.76 |
| Static Load (kN) | 8.88 |
| Speed rpm | 10500 |
| Weight | 0.0048 kg |
