SKU: HMV-38-EBF-HN-SNR

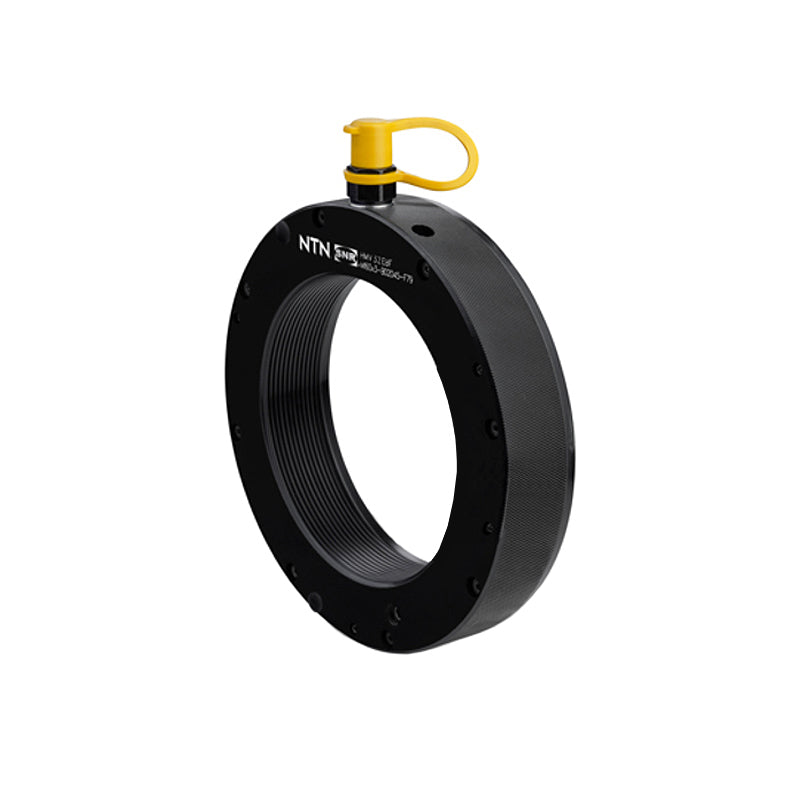

SNR HMV38 Metric Hydraulic Nut with M190x3 Thread - Allow 2-3 Days
SNR HMV38 Metric Hydraulic Nut with M190x3 Thread - Allow 2-3 Days
Regular price
$3,369.49
ex VAT
Regular price
Sale price
$3,369.49
ex VAT
In stock
Price Break
10+
$2,998.85
19+
$2,830.37
29+
$2,796.68
39+
$2,762.98
49+
$2,729.29
74+
$2,695.59
99+
$2,527.12
199+
$2,493.42
249+
$2,459.73
499+
$2,426.03
999+
$2,358.64
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M190x3
- Inside Diameter:
- 191mm
- Outside Diameter:
- 270mm
- Width:
- 50mm
- Flange Width:
- 8mm
Technical
Technical
| HMV | HMV38 |
|---|---|
| Thread G | M190x3 |
| Outside Diameter D | 270mm |
| Total Width B | 50mm |
| Piston Diameter max. d2 | 266mm |
| Permitted Piston Stroke | 7mm |
| Flange Width B1 | 8mm |
| Body Width B2 | 42mm |
| Diameter d1 | 191mm |
| Piston Surface Area | 11800mm2 |
| Weight | 10.7kg |
