SKU: HMV-33-EBF-HN-SNR

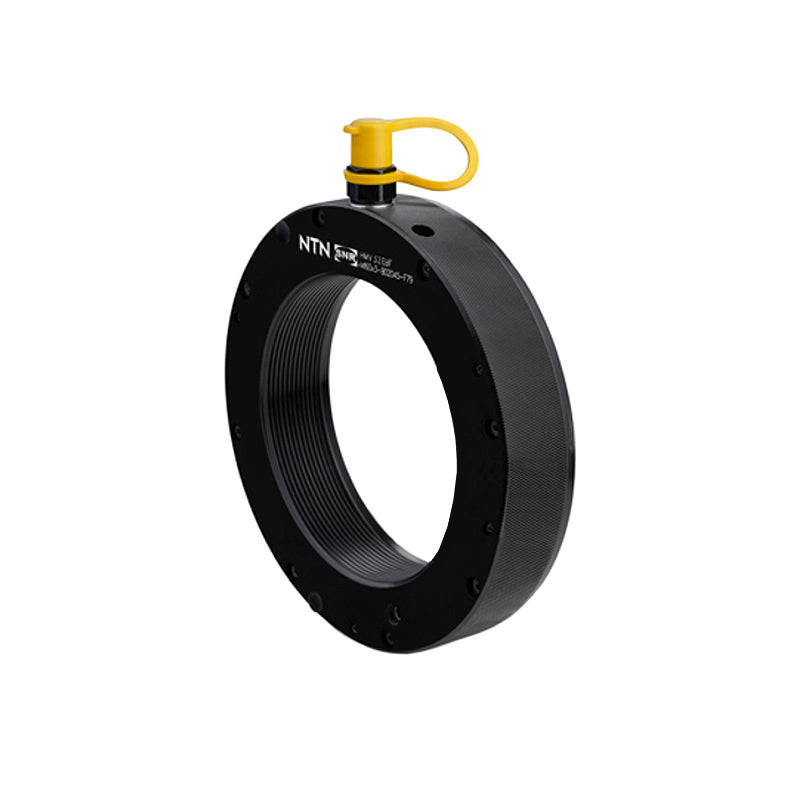

SNR HMV33 Metric Hydraulic Nut with M165x3 Thread - Allow 2-3 Days
SNR HMV33 Metric Hydraulic Nut with M165x3 Thread - Allow 2-3 Days
Regular price
$3,041.82
ex VAT
Regular price
Sale price
$3,041.82
ex VAT
In stock
Price Break
10+
$2,707.22
19+
$2,555.13
29+
$2,524.71
39+
$2,494.29
49+
$2,463.87
74+
$2,433.46
99+
$2,281.37
199+
$2,250.95
249+
$2,220.53
499+
$2,190.11
999+
$2,129.27
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M165x3
- Inside Diameter:
- 165.5mm
- Outside Diameter:
- 238mm
- Width:
- 47mm
- Flange Width:
- 7mm
Technical
Technical
| HMV | HMV33 |
|---|---|
| Thread G | M165x3 |
| Outside Diameter D | 238mm |
| Total Width B | 47mm |
| Piston Diameter max. d2 | 234mm |
| Permitted Piston Stroke | 6mm |
| Flange Width B1 | 7mm |
| Body Width B2 | 40mm |
| Diameter d1 | 165.5mm |
| Piston Surface Area | 8750mm2 |
| Weight | 8.1kg |
