SKU: HMV-32-EBF-HN-SNR

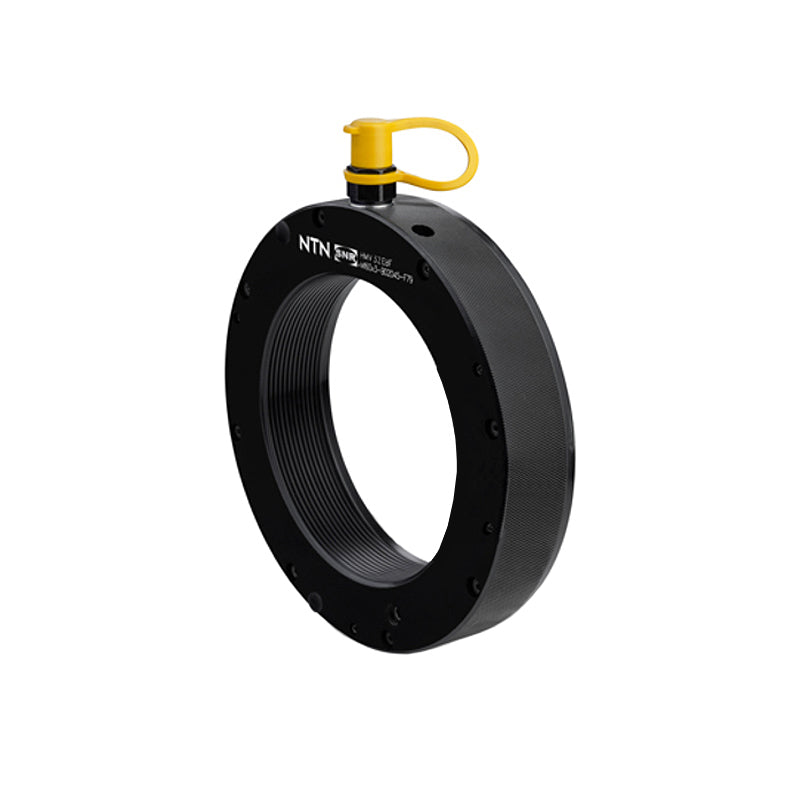

SNR HMV32 Metric Hydraulic Nut with M160x3 Thread - Allow 2-3 Days
SNR HMV32 Metric Hydraulic Nut with M160x3 Thread - Allow 2-3 Days
Regular price
$2,896.53
ex VAT
Regular price
Sale price
$2,896.53
ex VAT
In stock
Price Break
10+
$2,577.91
19+
$2,433.09
29+
$2,404.12
39+
$2,375.15
49+
$2,346.19
74+
$2,317.22
99+
$2,172.40
199+
$2,143.43
249+
$2,114.47
499+
$2,085.50
999+
$2,027.57
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M160x3
- Inside Diameter:
- 160.5mm
- Outside Diameter:
- 232mm
- Width:
- 47mm
- Flange Width:
- 7mm

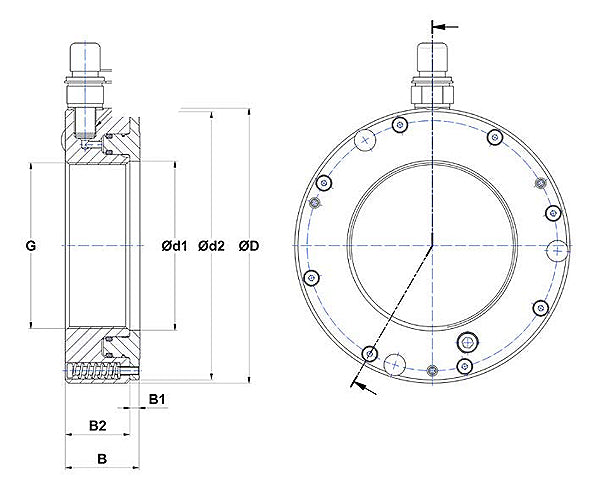

Technical
Technical
| HMV | HMV32 |
|---|---|
| Thread G | M160x3 |
| Outside Diameter D | 232mm |
| Total Width B | 47mm |
| Piston Diameter max. d2 | 228mm |
| Permitted Piston Stroke | 6mm |
| Flange Width B1 | 7mm |
| Body Width B2 | 40mm |
| Diameter d1 | 160.5mm |
| Piston Surface Area | 8650mm2 |
| Weight | 7.8kg |
