SKU: HMV-20-EBF-HN-SNR

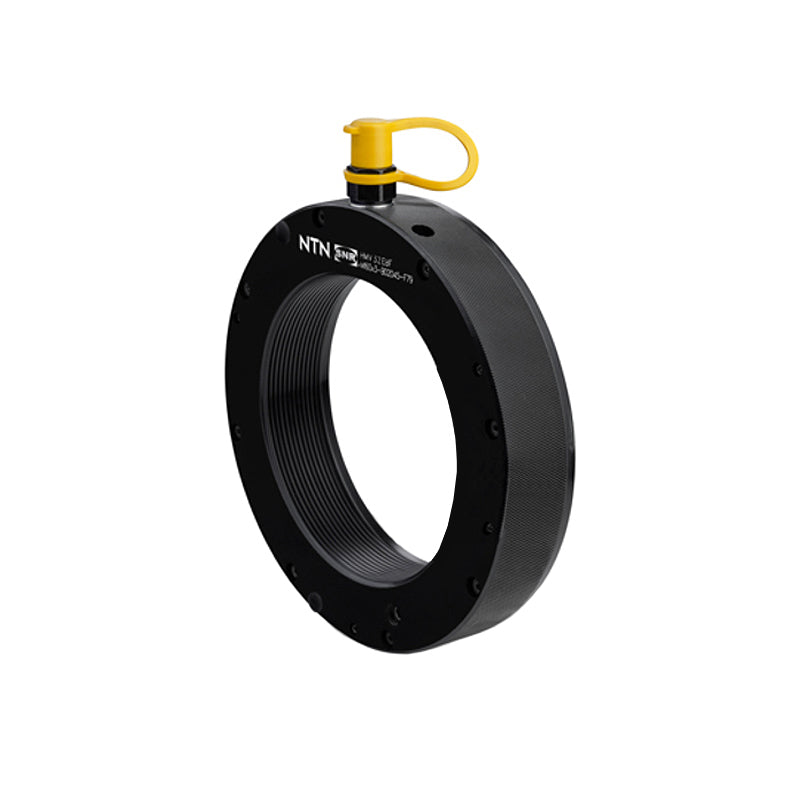

SNR HMV20 Metric Hydraulic Nut with M100x2 Thread - Allow 2-3 Days
SNR HMV20 Metric Hydraulic Nut with M100x2 Thread - Allow 2-3 Days
Regular price
$2,037.82
ex VAT
Regular price
Sale price
$2,037.82
ex VAT
Allow 2-3 Days
In stock
Price Break
10+
$1,813.66
19+
$1,711.77
29+
$1,691.39
39+
$1,671.01
49+
$1,650.63
74+
$1,630.26
99+
$1,528.37
199+
$1,507.99
249+
$1,487.61
499+
$1,467.23
999+
$1,426.47
Couldn't load pickup availability
Share this product
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M100x2
- Inside Diameter:
- 100.5mm
- Outside Diameter:
- 166mm
- Width:
- 44mm
- Flange Width:
- 6mm
Technical
Technical
| HMV | HMV20 |
|---|---|
| Thread G | M100x2 |
| Outside Diameter D | 166mm |
| Total Width B | 44mm |
| Piston Diameter max. d2 | 162mm |
| Permitted Piston Stroke | 5mm |
| Flange Width B1 | 6mm |
| Body Width B2 | 38mm |
| Diameter d1 | 100.5mm |
| Piston Surface Area | 5100mm2 |
| Weight | 4.6kg |
