Description
Description

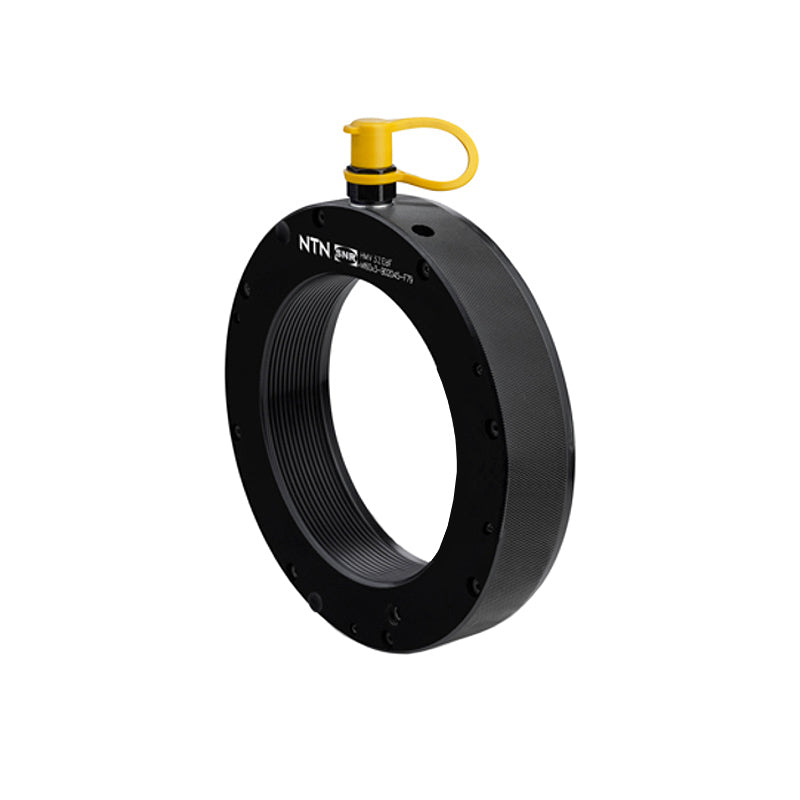

SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- Tr550x6
- Inside Diameter:
- 552mm
- Outside Diameter:
- 693mm
- Width:
- 83mm
- Flange Width:
- 13mm
Technical
Technical
| HMV | HMV110 |
|---|---|
| Thread G | Tr550x6 |
| Outside Diameter D | 693mm |
| Total Width B | 83mm |
| Piston Diameter max. d2 | 687mm |
| Permitted Piston Stroke | 21mm |
| Flange Width B1 | 13mm |
| Body Width B2 | 70mm |
| Diameter d1 | 552mm |
| Piston Surface Area | 59150mm2 |
| Weight | 84.2kg |
