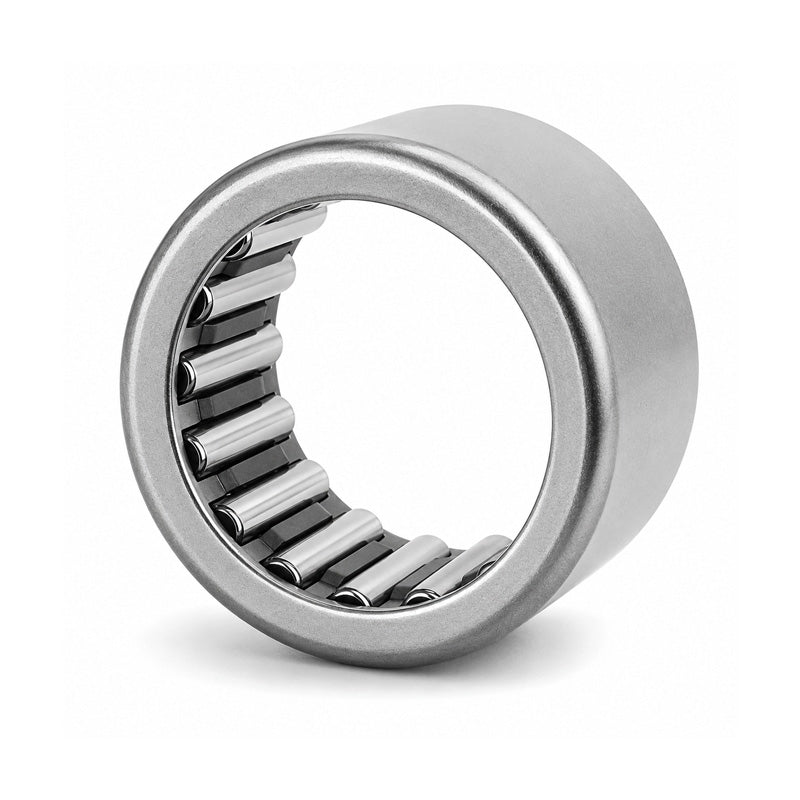

NTN HMK2830 Drawn Cup Needle Roller Bearing with Open End 28x37x30mm
NTN HMK2830 Drawn Cup Needle Roller Bearing with Open End 28x37x30mm
Regular price
$17.39
ex VAT
Regular price
Sale price
$17.39
ex VAT
In stock
Price Break
3+
$8.21
4+
$7.75
9+
$7.66
19+
$7.57
49+
$7.48
99+
$7.38
499+
$6.92
999+
$6.83
1999+
$6.74
2999+
$6.65
4999+
$6.46
Description
Description
HMK Type Drawn Cup Needle Roller Bearings: These bearings deliver superior load capacity compared to the standard HK series, featuring a thicker outer wall (increased outer diameter) for heavy-duty performance. Characterised by a low sectional height and compact design, they are an economical solution for high-load applications. Available in both open and sealed varieties.
Benefits: Enhanced radial load rating, reinforced outer width, and space-saving design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 37mm
- Width:
- 30mm
Technical
Technical
| Fw - Inside diameter | 28mm |
|---|---|
| D - Outside diameter | 37mm |
| C - Width of bearing, drawn cup or outer ring | 30mm |
| Lubrication hole on outer ring? | No |
| Cr - Dynamic load rating | 35 kN |
| C0r - Static load rating | 54.5 kN |
| N - Grease lubrication limit speed | 5500 tr/min |
| N - Oil lubrication limit speed | 8500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
