SKU: HK6032-EU

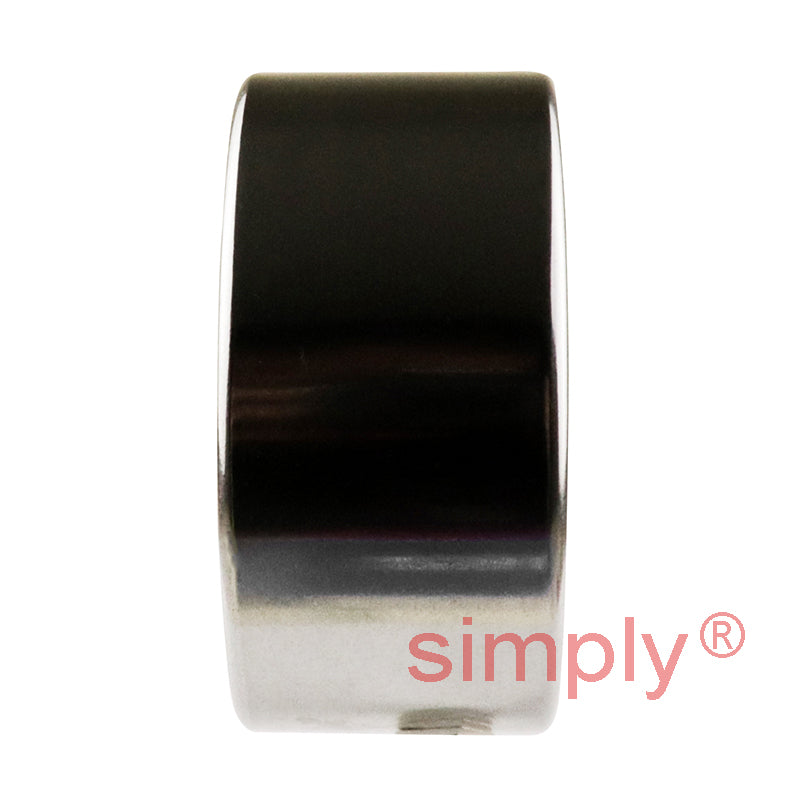

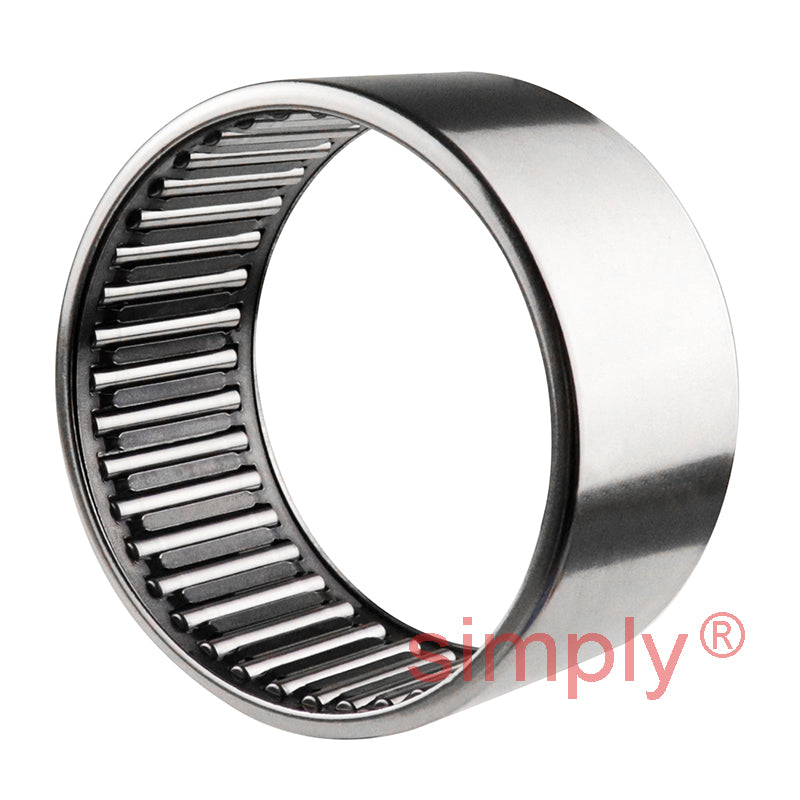

HK6032 Budget Drawn Cup Type Needle Roller Bearing Open End Type 60x68x32mm
HK6032 Budget Drawn Cup Type Needle Roller Bearing Open End Type 60x68x32mm
Regular price
$12.17
ex VAT
Regular price
Sale price
$12.17
ex VAT
In stock
Price Break
10+
$5.75
19+
$5.43
29+
$5.36
39+
$5.30
49+
$5.23
74+
$5.17
99+
$4.85
199+
$4.78
249+
$4.72
499+
$4.65
999+
$4.52
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 68mm
- Width:
- 32mm
Technical
Technical
| Fw | 60mm |
|---|---|
| D | 68mm |
| C | 32mm |
| Dynamic load C | 51200 N |
| Static load Co | 137000 N |
| Fatigue load limit Pu | 17000 N |
| Speed in grease | 3400 rpm |
| Speed in oil | 4800 rpm |
| r1r2 min | 0.8mm |
| Da max | 63mm |
| ra max | 0.8mm |
| Weight | 140 g |
