SKU: HK5024.2RS-EU

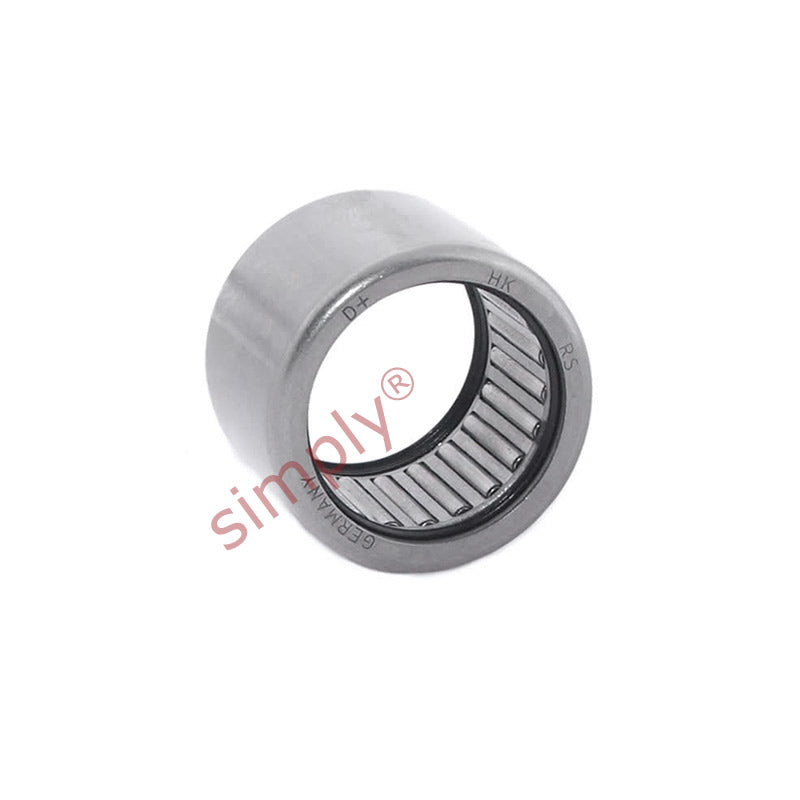

HK50242RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 50x58x24mm
HK50242RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 50x58x24mm
Regular price
$17.22
ex VAT
Regular price
Sale price
$17.22
ex VAT
In stock
Price Break
10+
$8.13
19+
$7.68
29+
$7.59
39+
$7.49
49+
$7.40
74+
$7.31
99+
$6.86
199+
$6.76
249+
$6.67
499+
$6.58
999+
$6.40
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 58mm
- Width:
- 24mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 58mm |
| C | 24mm |
| Dynamic load C | 29200 N |
| Static load Co | 63000 N |
| Fatigue load limit Pu | 7800 N |
| Speed in grease | 3800 rpm |
| r1r2 min | 0.8mm |
| Da max | 53mm |
| ra max | 0.8mm |
| Inner ring | LR/IR45x50x25.5 |
| Weight | 81 g |
