SKU: HK4520.2RS-EU

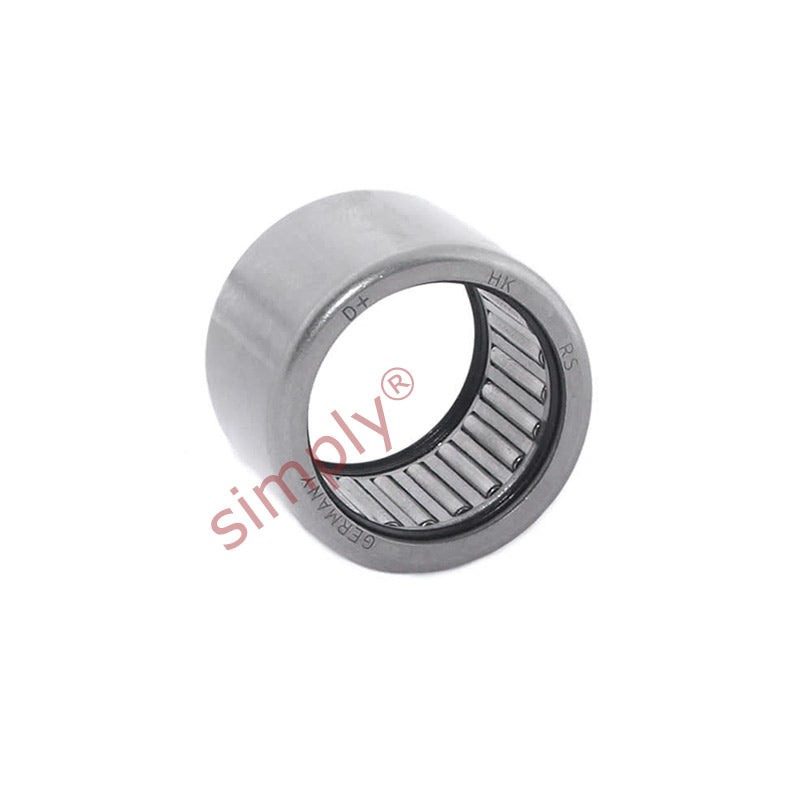

HK45202RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 45x52x20mm
HK45202RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 45x52x20mm
Regular price
$25.99
ex VAT
Regular price
Sale price
$25.99
ex VAT
In stock
Price Break
10+
$23.13
19+
$21.83
29+
$21.57
39+
$21.31
49+
$21.05
74+
$20.79
99+
$19.49
199+
$19.23
249+
$18.97
499+
$18.71
999+
$18.19
Couldn't load pickup availability
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 52mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 45mm |
|---|---|
| D | 52mm |
| C | 20mm |
| Dynamic load C | 20500 N |
| Static load Co | 43000 N |
| Fatigue load limit Pu | 5100 N |
| Speed in grease | 4300 rpm |
| r1r2 min | 0.8mm |
| Da max | 47mm |
| ra max | 0.8mm |
| Inner ring | LR/IR40x45x20.5 |
| Weight | 54 g |
