SKU: HK4518RS-EU

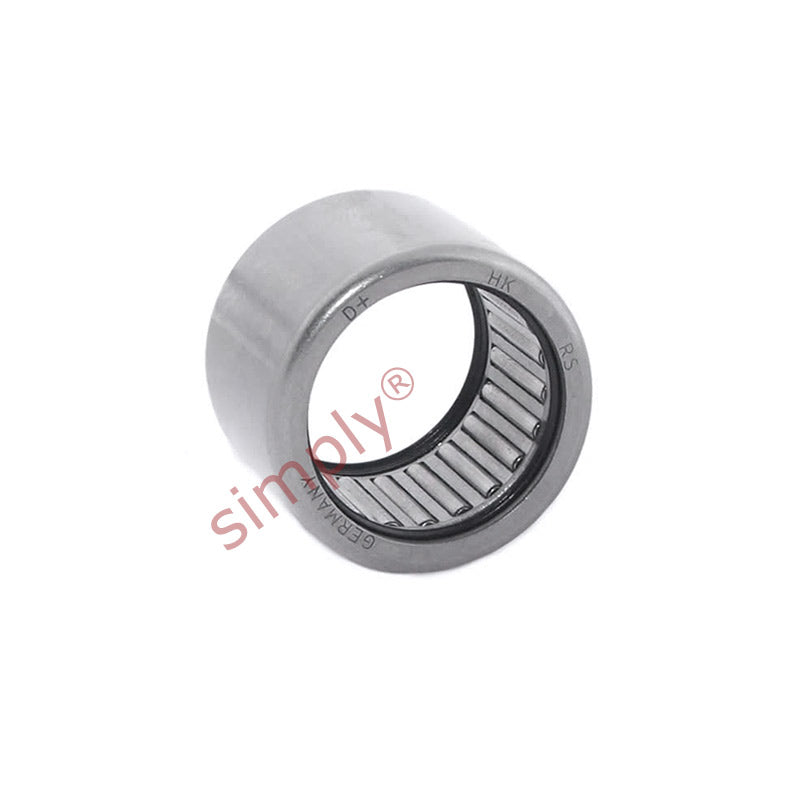

HK4518RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 45x52x18mm
HK4518RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 45x52x18mm
Regular price
$24.31
ex VAT
Regular price
Sale price
$24.31
ex VAT
In stock
Price Break
10+
$11.48
19+
$10.84
29+
$10.71
39+
$10.58
49+
$10.45
74+
$10.32
99+
$9.68
199+
$9.55
249+
$9.42
499+
$9.29
999+
$9.03
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 52mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 45mm |
|---|---|
| D | 52mm |
| C | 18mm |
| Dynamic load C | 20500 N |
| Static load Co | 43000 N |
| Fatigue load limit Pu | 5100 N |
| Speed in grease | 4300 rpm |
| r1r2 min | 0.8mm |
| Da max | 47mm |
| ra max | 0.8mm |
| Inner ring | LR/IR40x45x20.5 |
| Weight | 50 g |
