SKU: HK4020.2RS-EU

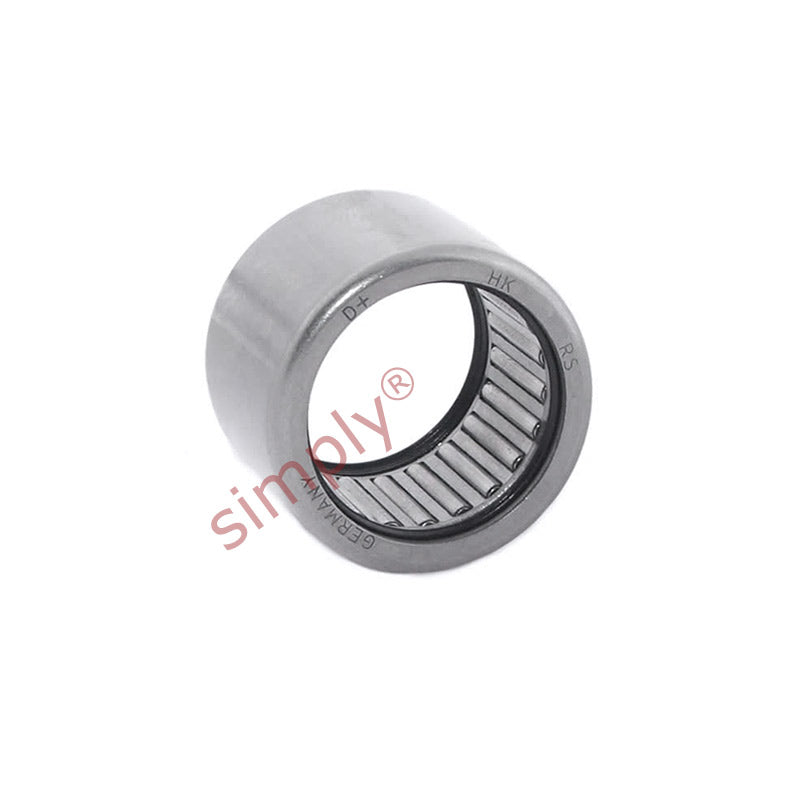

HK40202RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 40x47x20mm
HK40202RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 40x47x20mm
Regular price
$20.45
ex VAT
Regular price
Sale price
$20.45
ex VAT
In stock
Price Break
10+
$9.66
19+
$9.11
29+
$9.00
39+
$8.90
49+
$8.79
74+
$8.68
99+
$8.14
199+
$8.03
249+
$7.92
499+
$7.81
999+
$7.59
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 47mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 47mm |
| C | 20mm |
| Dynamic load C | 19000 N |
| Static load Co | 39000 N |
| Fatigue load limit Pu | 4550 N |
| Speed in grease | 4500 rpm |
| r1r2 min | 0.8mm |
| Da max | 42mm |
| ra max | 0.8mm |
| Inner ring | LR/IR35x40x20.5 |
| Weight | 48 g |
