SKU: HK3518L/3AS-NTN

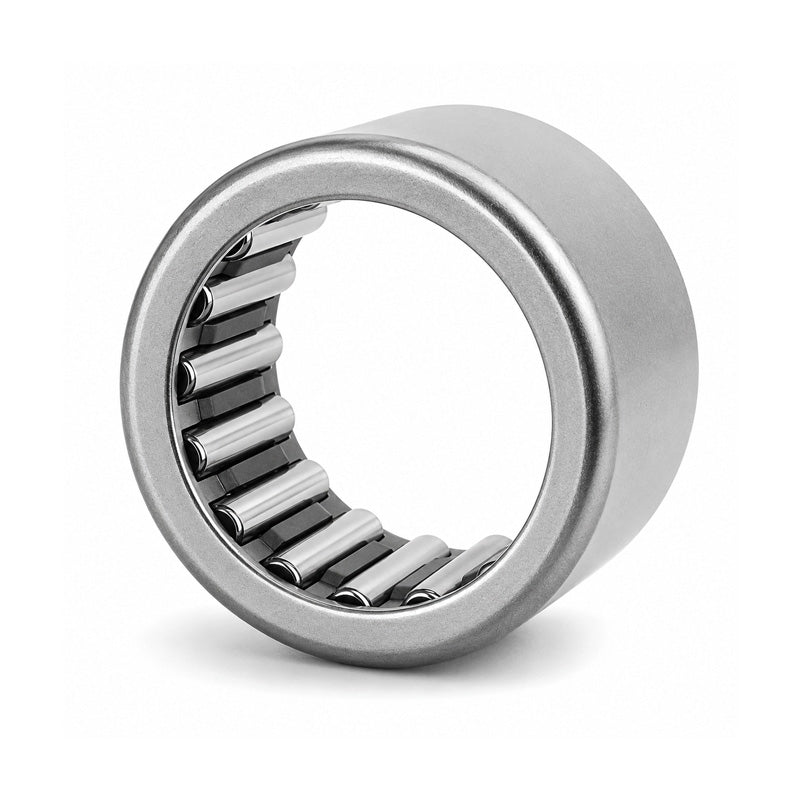

NTN HK3518L/3AS Drawn Cup Needle Roller Bearing with Open End 35x42x18mm
NTN HK3518L/3AS Drawn Cup Needle Roller Bearing with Open End 35x42x18mm
Regular price
$11.59
ex VAT
Regular price
Sale price
$11.59
ex VAT
In stock
Price Break
3+
$5.47
4+
$5.17
9+
$5.10
19+
$5.04
49+
$4.98
99+
$4.92
499+
$4.61
999+
$4.55
1999+
$4.49
2999+
$4.43
4999+
$4.31
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 42mm
- Width:
- 18mm
Technical
Technical
| Fw - Inside diameter | 35mm |
|---|---|
| D - Outside diameter | 42mm |
| C1 - Width of Drawn cup L | 18mm |
| C3 - Max drawn cup closed end thickness LL | 2.7mm |
| Lubrication hole on outer ring? | No |
| Cr - Dynamic load rating | 19.7 kN |
| C0r - Static load rating | 35 kN |
| N - Grease lubrication limit speed | 4600 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
