SKU: HK2538ZWD-NTN

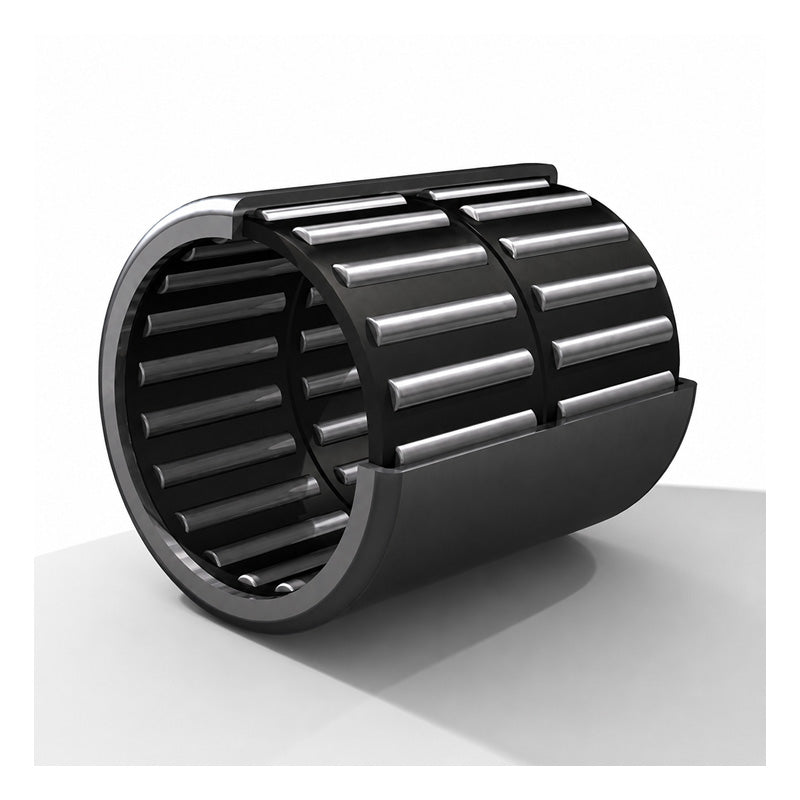

NTN HK2538ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 25x32x38mm

NTN HK2538ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 25x32x38mm
Regular price $14.13 ex VAT
Regular price Sale price $14.13 ex VAT
Sale Sold out

In stock

Price Break
3+ $6.68
4+ $6.30
9+ $6.23
19+ $6.15
49+ $6.08
99+ $6.00
499+ $5.63
999+ $5.55
1999+ $5.48
2999+ $5.40
4999+ $5.25
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Inside diameter 25mm
D - Outside diameter 32mm
C - Width of bearing, drawn cup or outer ring 38mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Inner ring reference IR20X25X38.5
Cr - Dynamic load rating 35 kN
C0r - Static load rating 65.5 kN
N - Grease lubrication limit speed 6500 tr/min
N - Oil lubrication limit speed 9500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
