SKU: HK2530.2RS-EU

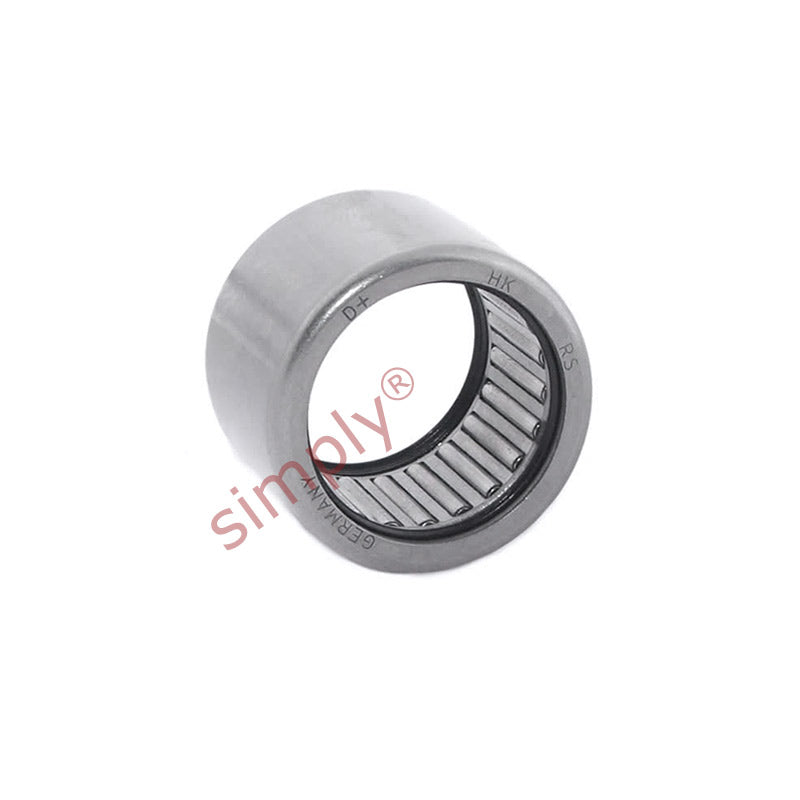

HK25302RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 25x32x30mm
HK25302RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 25x32x30mm
Regular price
$16.32
ex VAT
Regular price
Sale price
$16.32
ex VAT
In stock
Price Break
10+
$7.70
19+
$7.27
29+
$7.18
39+
$7.10
49+
$7.01
74+
$6.93
99+
$6.49
199+
$6.41
249+
$6.32
499+
$6.23
999+
$6.06
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 30mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 32mm |
| C | 30mm |
| Dynamic load C | 24200 N |
| Static load Co | 45000 N |
| Fatigue load limit Pu | 5500 N |
| Speed in grease | 7000 rpm |
| r1r2 min | 0.8mm |
| Da max | 27mm |
| ra max | 0.8mm |
| Inner ring | IR20x25x30 |
| Weight | 47 g |
