SKU: HK1718-EU

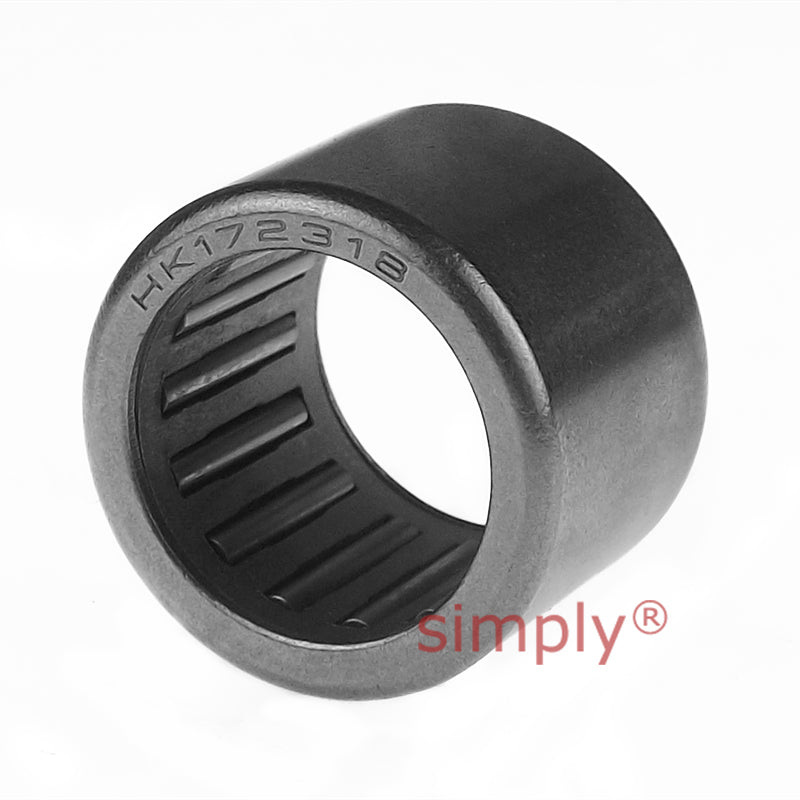

HK1718 Budget Drawn Cup Type Needle Roller Bearing Open End Type 17x23x18mm
HK1718 Budget Drawn Cup Type Needle Roller Bearing Open End Type 17x23x18mm
Regular price
$6.45
ex VAT
Regular price
Sale price
$6.45
ex VAT
In stock
Price Break
10+
$5.74
19+
$5.42
29+
$5.35
39+
$5.29
49+
$5.22
74+
$5.16
99+
$4.84
199+
$4.77
249+
$4.71
499+
$4.64
999+
$4.52
Couldn't load pickup availability
Description
Description
|

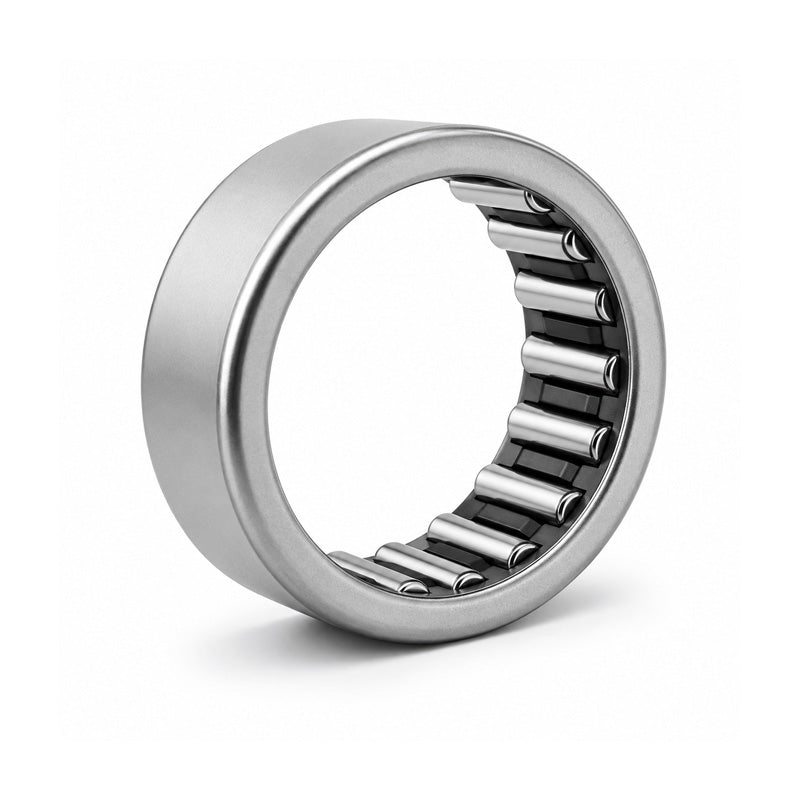

Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 23mm
- Width:
- 18mm
Technical
Technical
| Fw | 17mm |
|---|---|
| D | 23mm |
| C | 18mm |
