SKU: HK1516F-NTN

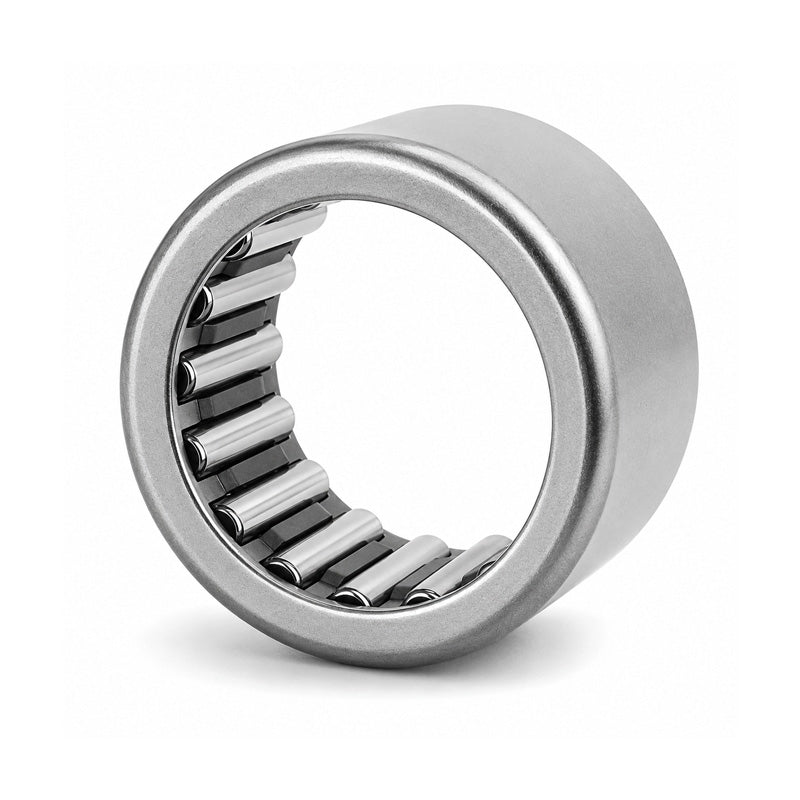

NTN HK1516F Drawn Cup Needle Roller Bearing with Open End 15x21x16mm
NTN HK1516F Drawn Cup Needle Roller Bearing with Open End 15x21x16mm
Regular price
$9.50
ex VAT
Regular price
Sale price
$9.50
ex VAT
In stock
Price Break
10+
$8.46
19+
$7.98
29+
$7.89
39+
$7.79
49+
$7.70
74+
$7.60
99+
$7.13
199+
$7.03
249+
$6.94
499+
$6.84
999+
$6.65
Couldn't load pickup availability
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 21mm
- Width:
- 16mm
Technical
Technical
| Fw - Inside diameter | 15mm |
|---|---|
| D - Outside diameter | 21mm |
| C - Width of bearing, drawn cup or outer ring | 16mm |
| Lubrication hole on outer ring? | No |
| Cr - Dynamic load rating | 10.7 kN |
| C0r - Static load rating | 14.4 kN |
| N - Grease lubrication limit speed | 11000 tr/min |
| N - Oil lubrication limit speed | 16000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
