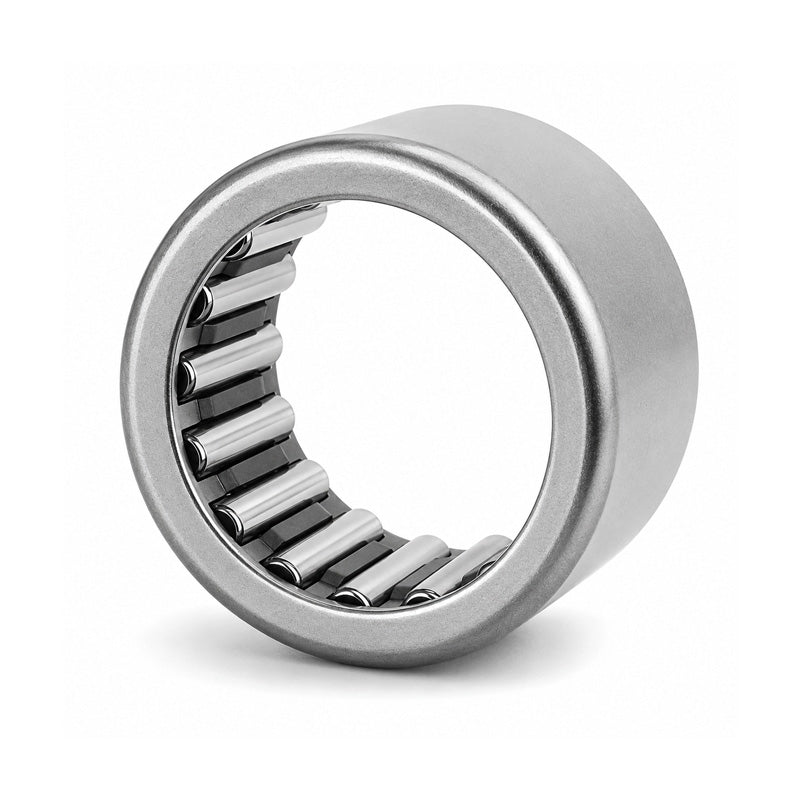

NTN HK1216LL/3AS Drawn Cup Needle Roller Bearing with Open End 12x18x16mm
NTN HK1216LL/3AS Drawn Cup Needle Roller Bearing with Open End 12x18x16mm
Regular price
$11.29
ex VAT
Regular price
Sale price
$11.29
ex VAT
In stock
Price Break
3+
$5.33
4+
$5.03
9+
$4.97
19+
$4.91
49+
$4.85
99+
$4.79
499+
$4.49
999+
$4.43
1999+
$4.37
2999+
$4.31
4999+
$4.19
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 18mm
- Width:
- 16mm
Technical
Technical
| Fw - Inside diameter | 12mm |
|---|---|
| D - Outside diameter | 18mm |
| C2 - Width of drawn cup LL | 16mm |
| C3 - Max drawn cup closed end thickness LL | 2.7mm |
| Lubrication hole on outer ring? | No |
| Cr - Dynamic load rating | 6.6 kN |
| C0r - Static load rating | 7.3 kN |
| N - Grease lubrication limit speed | 10000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
