SKU: HK1014.2RS-EU

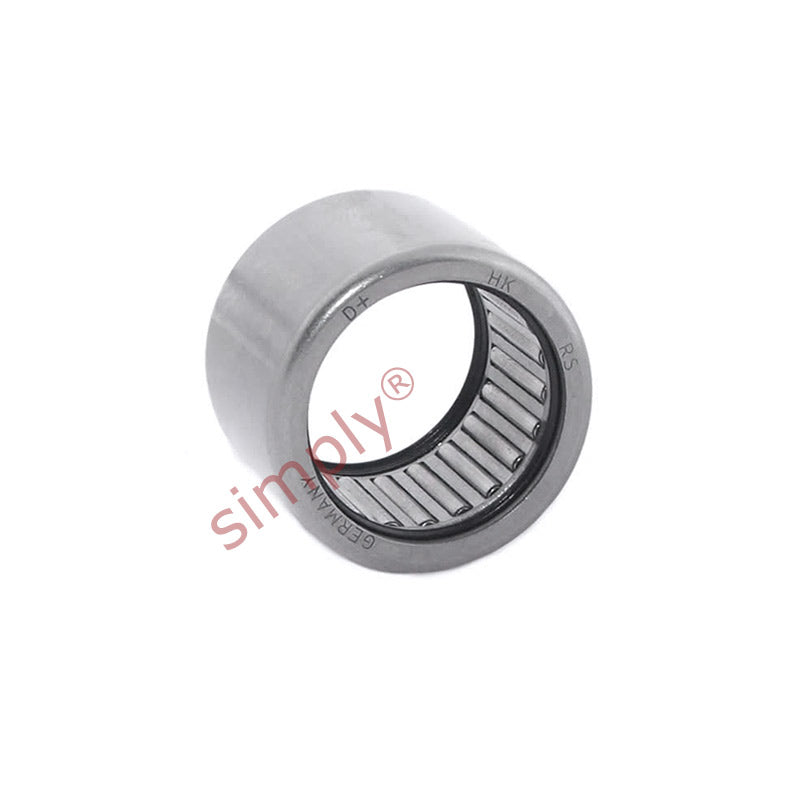

HK10142RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 10x14x14mm
HK10142RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 10x14x14mm
Regular price
$3.75
ex VAT
Regular price
Sale price
$3.75
ex VAT
In stock
Price Break
10+
$3.34
19+
$3.15
29+
$3.11
39+
$3.08
49+
$3.04
74+
$3.00
99+
$2.81
199+
$2.78
249+
$2.74
499+
$2.70
999+
$2.63
Couldn't load pickup availability
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 14mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 10mm |
|---|---|
| D | 14mm |
| C | 14mm |
| Dynamic load C | 4290 N |
| Static load Co | 5300 N |
| Fatigue load limit Pu | 570 N |
| Speed in grease | 13000 rpm |
| r1r2 min | 0.4mm |
| Da max | 10.3mm |
| ra max | 0.4mm |
| Inner ring | IR7x10x16 |
| Weight | 4.6 g |
