SKU: HK1012F-NTN

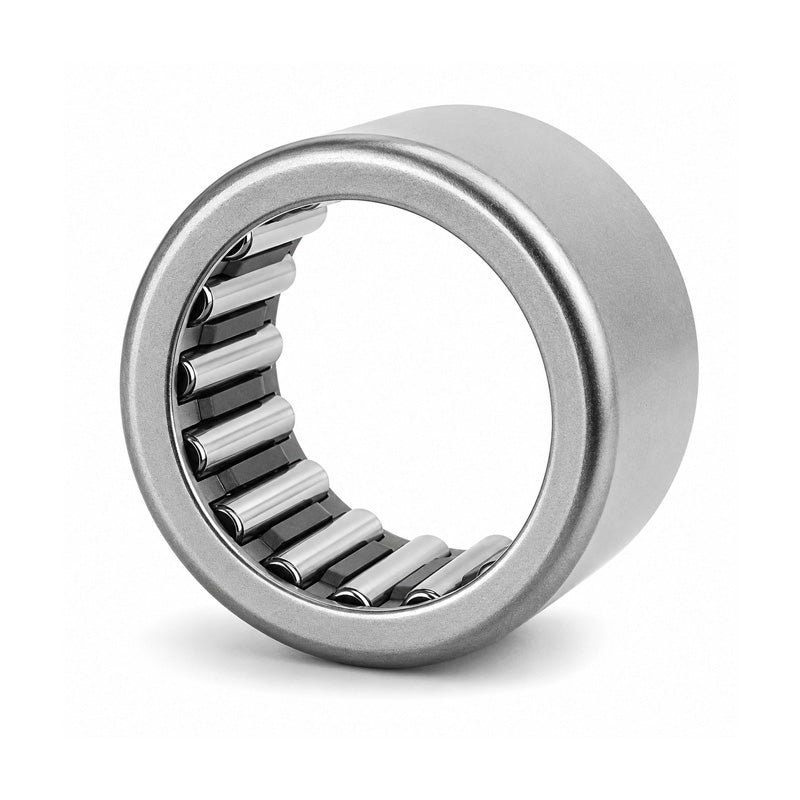

NTN HK1012F Drawn Cup Needle Roller Bearing with Open End 10x14x12mm
NTN HK1012F Drawn Cup Needle Roller Bearing with Open End 10x14x12mm
Regular price
$8.79
ex VAT
Regular price
Sale price
$8.79
ex VAT
In stock
Price Break
10+
$7.82
19+
$7.38
29+
$7.30
39+
$7.21
49+
$7.12
74+
$7.03
99+
$6.59
199+
$6.50
249+
$6.42
499+
$6.33
999+
$6.15
Couldn't load pickup availability
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 14mm
- Width:
- 12mm
Technical
Technical
| Fw - Inside diameter | 10mm |
|---|---|
| D - Outside diameter | 14mm |
| C - Width of bearing, drawn cup or outer ring | 12mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR7X10X16 |
| Cr - Dynamic load rating | 5.65 kN |
| C0r - Static load rating | 6.8 kN |
| N - Grease lubrication limit speed | 16000 tr/min |
| N - Oil lubrication limit speed | 24000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
