SKU: HK0910-EU

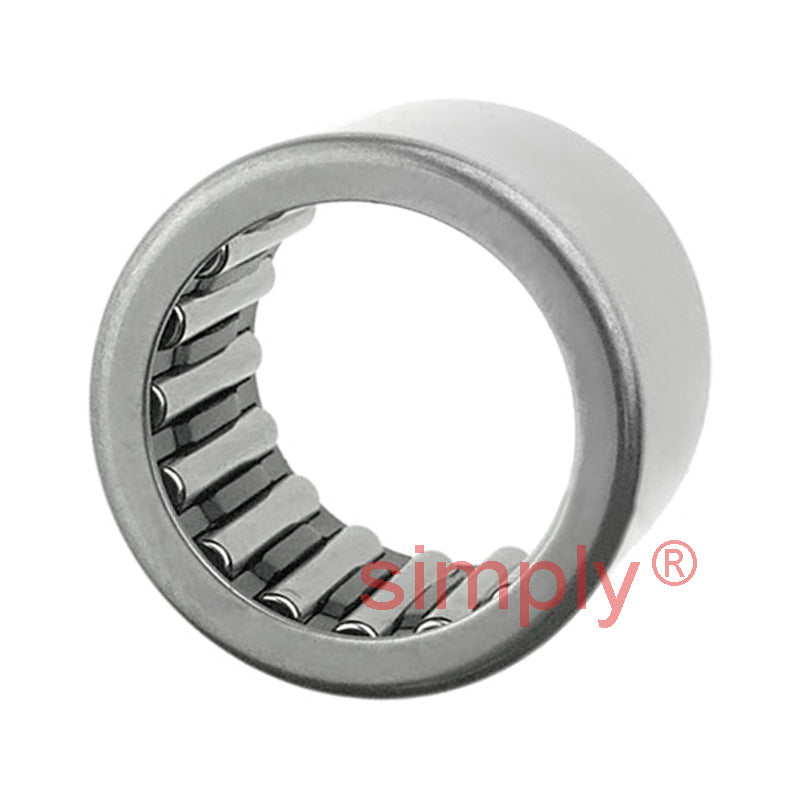

HK0910 Budget Drawn Cup Type Needle Roller Bearing Open End Type 9x13x10mm
HK0910 Budget Drawn Cup Type Needle Roller Bearing Open End Type 9x13x10mm
Regular price
$5.70
ex VAT
Regular price
Sale price
$5.70
ex VAT
Equivalent to: TLA910Z RHNA091310
In stock
Price Break
10+
$5.07
19+
$4.79
29+
$4.73
39+
$4.67
49+
$4.62
74+
$4.56
99+
$4.28
199+
$4.22
249+
$4.16
499+
$4.10
999+
$3.99
Couldn't load pickup availability
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Equivalent: TLA910Z RHNA091310
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 13mm
- Width:
- 10mm
Technical
Technical
| Fw | 9mm |
|---|---|
| D | 13mm |
| C | 10mm |
| Dynamic load C | 4130 N |
| Static load Co | 4800 N |
| Fatigue load limit Pu | 530 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| r1r2 min | 0.4mm |
| Da max | 9.3mm |
| ra max | 0.4mm |
| Inner ring | IR6x9x12 |
| Seal | G9x13x3 |
| Weight | 4 g |
