SKU: HGJ55-JCS

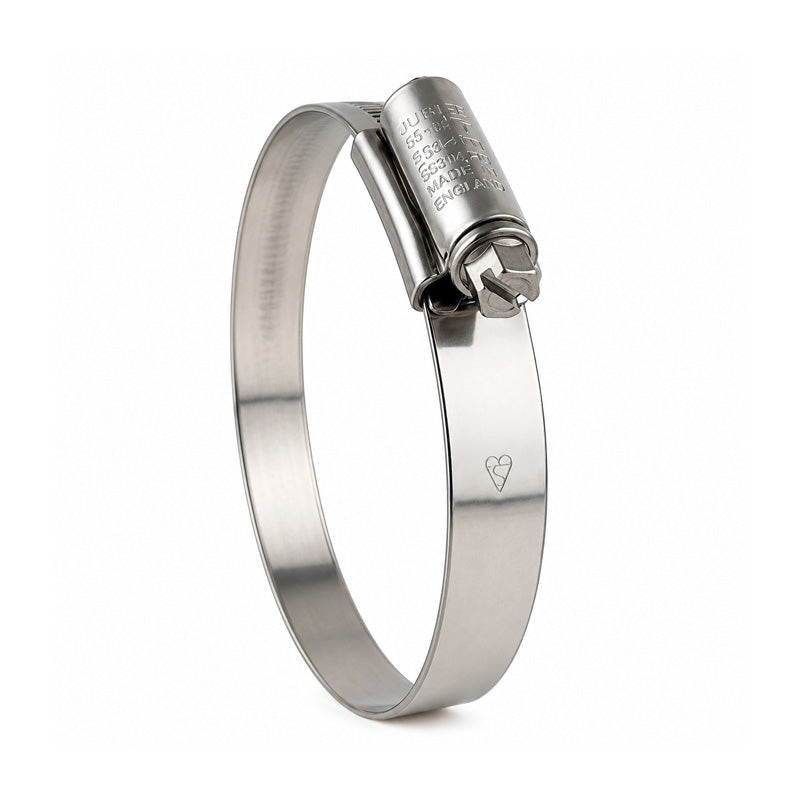

JCS HGJ55 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 40-55mm Band Width 13mm
JCS HGJ55 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 40-55mm Band Width 13mm
Regular price
$17.34
ex VAT
Regular price
Sale price
$17.34
ex VAT
In stock
Price Break
10+
$15.43
19+
$14.57
29+
$14.39
39+
$14.22
49+
$14.05
74+
$13.87
99+
$13.01
199+
$12.83
249+
$12.66
499+
$12.48
999+
$12.14
Couldn't load pickup availability
Description
Description
316 Stainless Steel Hi-Grip Worm Drive Hose Clips: Principally aimed at the marine, food, petrochemical and pharmaceutical industries, the Hi-Grip 316 hose clip is made entirely from BS316 EN 1.4401/1.4578 austenitic stainless steel, providing the same superior performance as the rest of the Hi-Grip range but with maximum corrosion resistance. Lloyd’s Register Type Approved for marine, offshore and industrial use. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
- Brand / Quality:
- JCS - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 40mm
- Max Adjustment Range:
- 55mm
Technical
Technical
| BS No. | 55 |
|---|---|
| Adjustment Range (mm) | 40-55mm |
| Adjustment Range (inch) | 1-5/8 - 2-1/8 inch |
| A | 13mm |
| B | 20mm |
| C | 12mm |
| D | 16mm |
| E | 13mm |
| F | 0.9mm |
| Screw | 7mm A/F |
| Recommended Torque Nm | 6Nm |
| Recommended Torque lb-in | 54lb-in |
