SKU: HFL.3030.MB

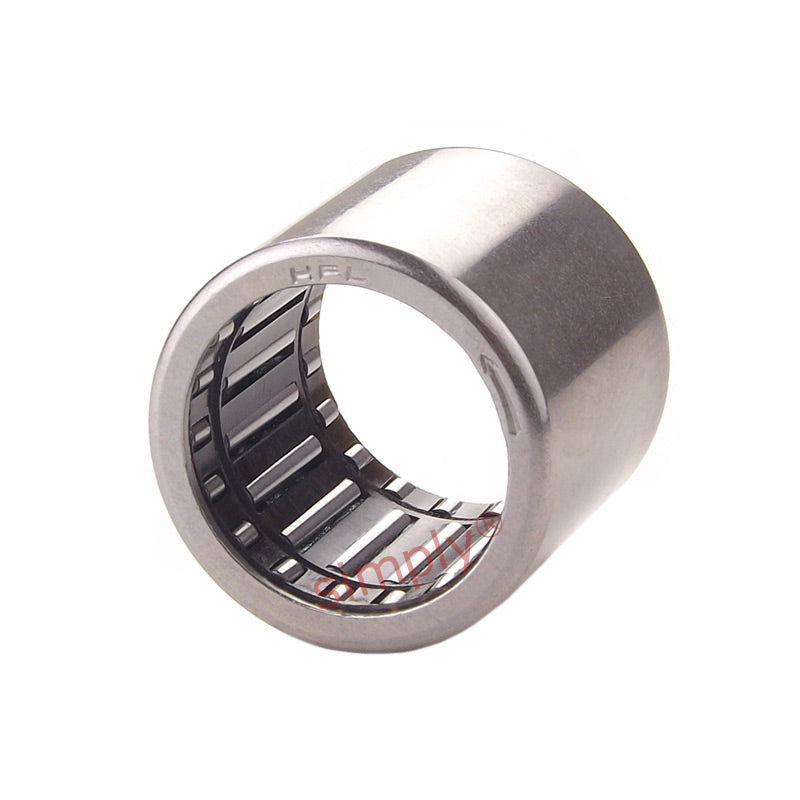

Branded HFL3030 Needle Roller Clutch Type One Way Bearing 30x37x30mm
Branded HFL3030 Needle Roller Clutch Type One Way Bearing 30x37x30mm
Regular price
$54.57
ex VAT
Regular price
Sale price
$54.57
ex VAT
In stock
Price Break
10+
$25.77
19+
$24.33
29+
$24.04
39+
$23.75
49+
$23.46
74+
$23.17
99+
$21.72
199+
$21.43
249+
$21.14
499+
$20.85
999+
$20.27
Share this product
Description
Description
|
Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 37mm
- Width:
- 30mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 37mm |
| C | 30mm |
| Tolerance | 0.3mm |
| r min | 0.3 |
| Torque | 90 N m |
| Speed (rotating shaft) | 4500 rpm |
| Speed (rotating outer ring) | 4500 rpm |
| Weight | 51 g |
