SKU: HFL.2530.MB

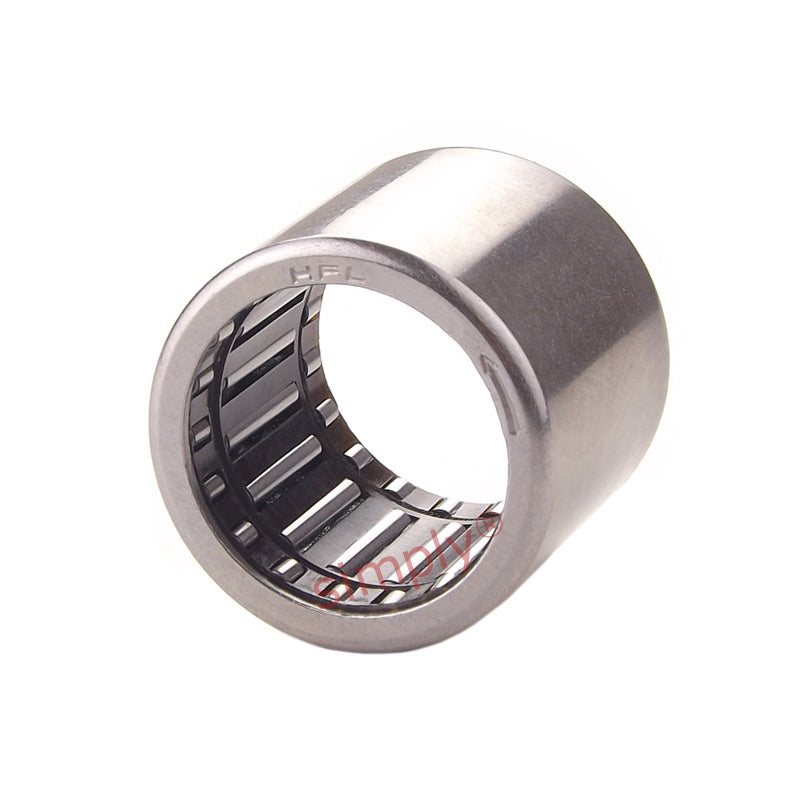

Branded HFL2530 Needle Roller Clutch Type One Way Bearing 25x32x30mm
Branded HFL2530 Needle Roller Clutch Type One Way Bearing 25x32x30mm
Regular price
$64.52
ex VAT
Regular price
Sale price
$64.52
ex VAT
In stock
Price Break
10+
$30.48
19+
$28.77
29+
$28.42
39+
$28.08
49+
$27.74
74+
$27.40
99+
$25.68
199+
$25.34
249+
$25.00
499+
$24.66
999+
$23.97
Share this product
Description
Description
|
Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 30mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 32mm |
| C | 30mm |
| Tolerance | 0.3mm |
| r min | 0.3 |
| Torque | 66 N m |
| Speed (rotating shaft) | 5500 rpm |
| Speed (rotating outer ring) | 5500 rpm |
| Weight | 44 g |
