SKU: HFL.1226.EU

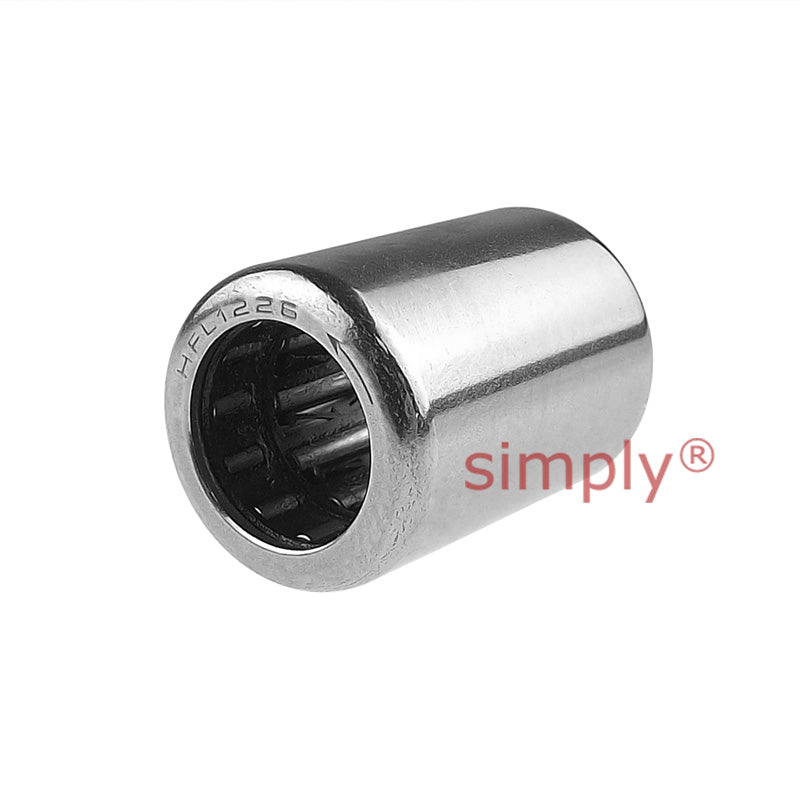

HFL1226 Budget Needle Roller Clutch Type One Way Bearing 12x18x26mm
HFL1226 Budget Needle Roller Clutch Type One Way Bearing 12x18x26mm
Regular price
$13.29
ex VAT
Regular price
Sale price
$13.29
ex VAT
In stock
Price Break
10+
$6.28
19+
$5.92
29+
$5.85
39+
$5.78
49+
$5.71
74+
$5.64
99+
$5.29
199+
$5.22
249+
$5.15
499+
$5.08
999+
$4.94
Share this product
Description
Description
|
Budget Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 18mm
- Width:
- 26mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 18mm |
| C | 26mm (Tolerance: 0/-0.3) |
| r min | 0.3mm |
| Permissable torque | 12.2 Nm |
| Speed (rotating shaft) | 11000 rpm |
| Speed (rotating outer ring) | 8000 rpm |
| Maximum permissable radial load | 6300 N |
| Limiting load | 6700 N/min |
| Weight | 18 g |
