SKU: HFL.1022.MB

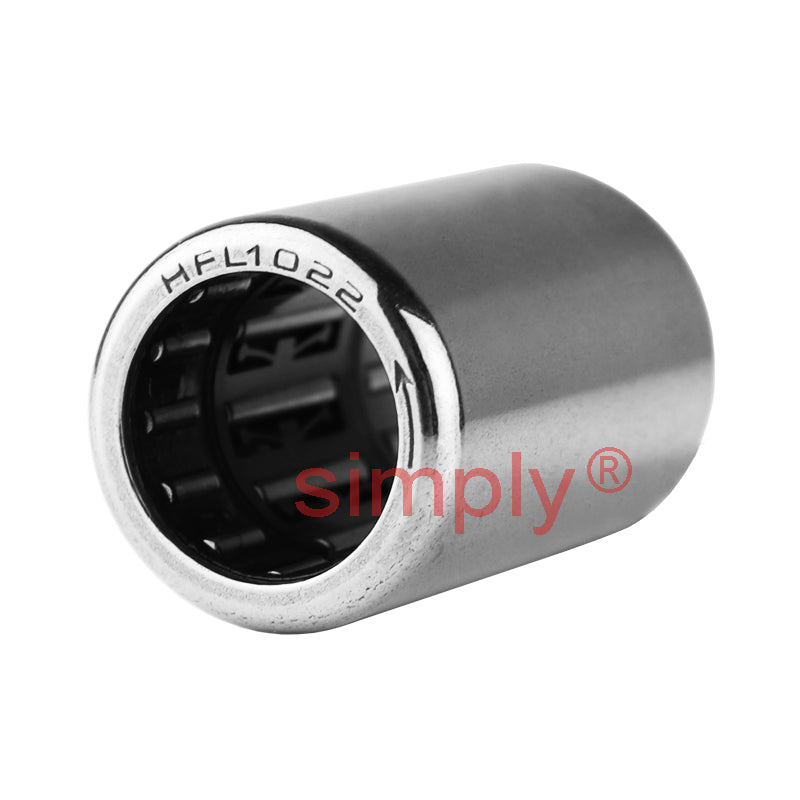

Branded HFL1022 Needle Roller Clutch Type One Way Bearing 10x14x22mm
Branded HFL1022 Needle Roller Clutch Type One Way Bearing 10x14x22mm
Regular price
$40.97
ex VAT
Regular price
Sale price
$40.97
ex VAT
In stock
Price Break
10+
$19.35
19+
$18.26
29+
$18.05
39+
$17.83
49+
$17.61
74+
$17.39
99+
$16.31
199+
$16.09
249+
$15.87
499+
$15.65
999+
$15.22
Share this product
Description
Description
|
Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 14mm
- Width:
- 22mm
Technical
Technical
| Fw | 10mm |
|---|---|
| D | 14mm |
| C | 22mm |
| Tolerance | 0.3mm |
| r min | 0.3 |
| Torque | 5.3 N m |
| Speed (rotating shaft) | 14000 rpm |
| Speed (rotating outer ring) | 11000 rpm |
| Weight | 8 g |
