SKU: HFL.0822.MB

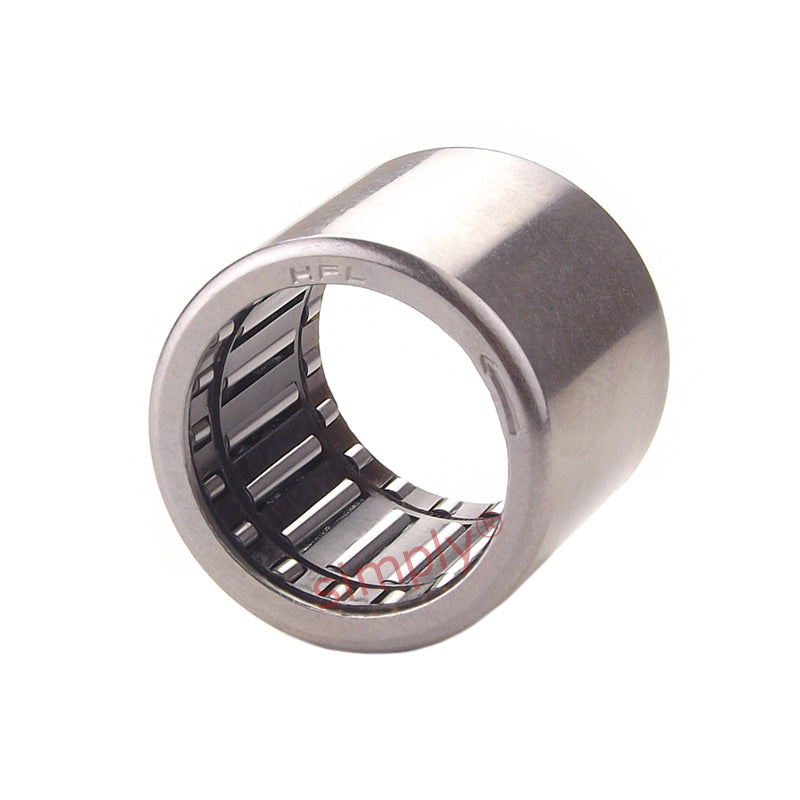

Branded HFL0822 Needle Roller Clutch Type One Way Bearing 8x12x22mm
Branded HFL0822 Needle Roller Clutch Type One Way Bearing 8x12x22mm
Regular price
$20.45
ex VAT
Regular price
Sale price
$20.45
ex VAT
In stock
Price Break
10+
$9.66
19+
$9.11
29+
$9.01
39+
$8.90
49+
$8.79
74+
$8.68
99+
$8.14
199+
$8.03
249+
$7.92
499+
$7.81
999+
$7.60
Share this product
Description
Description
|
Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 12mm
- Width:
- 22mm
Technical
Technical
| Fw | 8mm |
|---|---|
| D | 12mm |
| C | 22mm |
| Tolerance | 0.3mm |
| r min | 0.3 |
| Torque | 3.15 N m |
| Speed (rotating shaft) | 17000 rpm |
| Speed (rotating outer ring) | 12000 rpm |
| Weight | 7 g |
