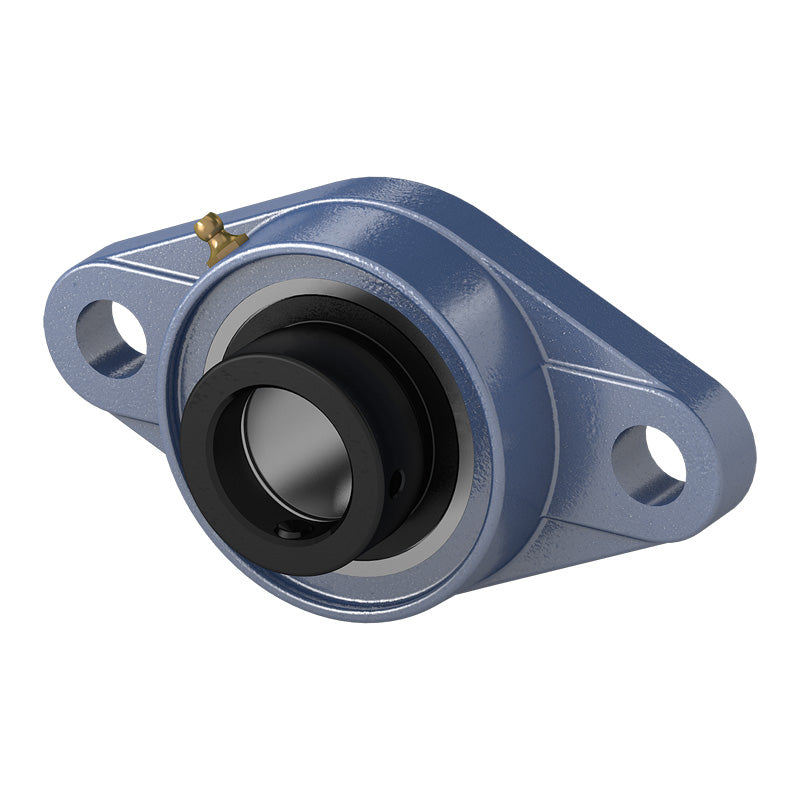

HCFL215 Metric Two Bolt Cast Iron Oval Housing with 75mm Eccentric Collar Insert
HCFL215 Metric Two Bolt Cast Iron Oval Housing with 75mm Eccentric Collar Insert
Regular price
$222.46
ex VAT
Regular price
Sale price
$222.46
ex VAT
In stock
Price Break
3+
$105.06
4+
$99.16
9+
$97.98
19+
$96.80
49+
$95.62
99+
$94.44
499+
$88.53
999+
$87.35
1999+
$86.17
2999+
$84.99
4999+
$82.63
Share this product
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Style:
- HCFL
- Bolt Hole Centres:
- 225mm
Technical
Technical
| d | 75mm |
|---|---|
| a | 275mm |
| e | 225mm |
| i | 34mm |
| g | 22mm |
| l | 56mm |
| s | 23mm |
| b | 165mm |
| z | 88.8mm |
| B1 | 92.1mm |
| n | 37.3mm |
| Bolt size | M20 |
| Bearing no | HC215 |
| Housing no | FL215 |
| Weight | 6.09 kg |
