SKU: HCFL214

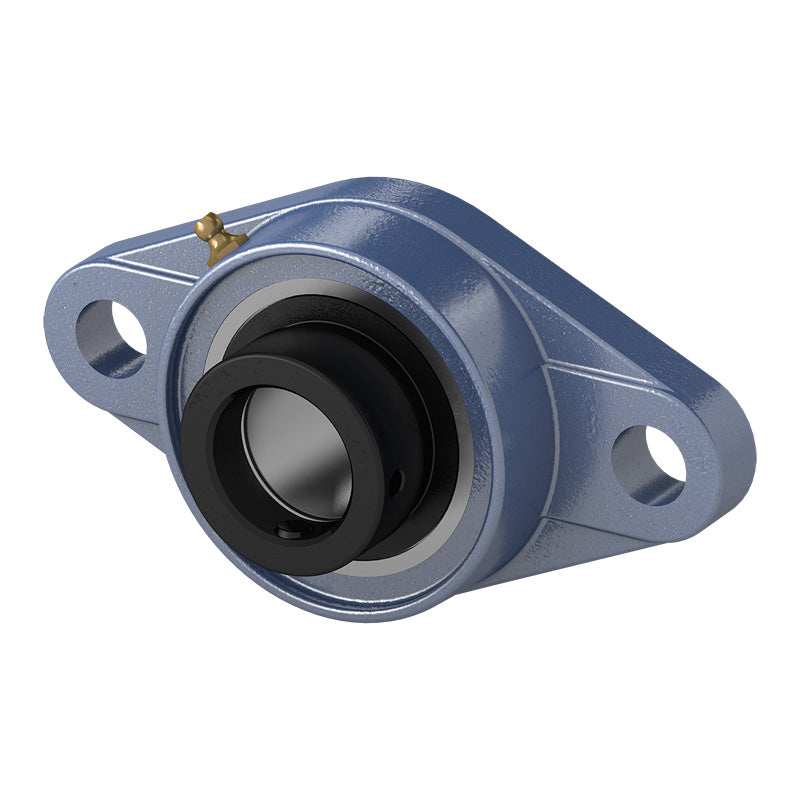

HCFL214 Metric Two Bolt Cast Iron Oval Housing with 70mm Eccentric Collar Insert
HCFL214 Metric Two Bolt Cast Iron Oval Housing with 70mm Eccentric Collar Insert
Regular price
$160.96
ex VAT
Regular price
Sale price
$160.96
ex VAT
In stock
Price Break
10+
$143.25
19+
$135.21
29+
$133.60
39+
$131.99
49+
$130.38
74+
$128.77
99+
$120.72
199+
$119.11
249+
$117.50
499+
$115.89
999+
$112.67
Couldn't load pickup availability
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Style:
- HCFL
- Bolt Hole Centres:
- 216mm
Technical
Technical
| d | 70mm |
|---|---|
| a | 265mm |
| e | 216mm |
| i | 31mm |
| g | 22mm |
| l | 54mm |
| s | 23mm |
| b | 160mm |
| z | 82.6mm |
| B1 | 85.7mm |
| n | 34.1mm |
| Bolt size | M20 |
| Bearing no | HC214 |
| Housing no | FL214 |
| Weight | 5.53 kg |
