SKU: HCFL208-24

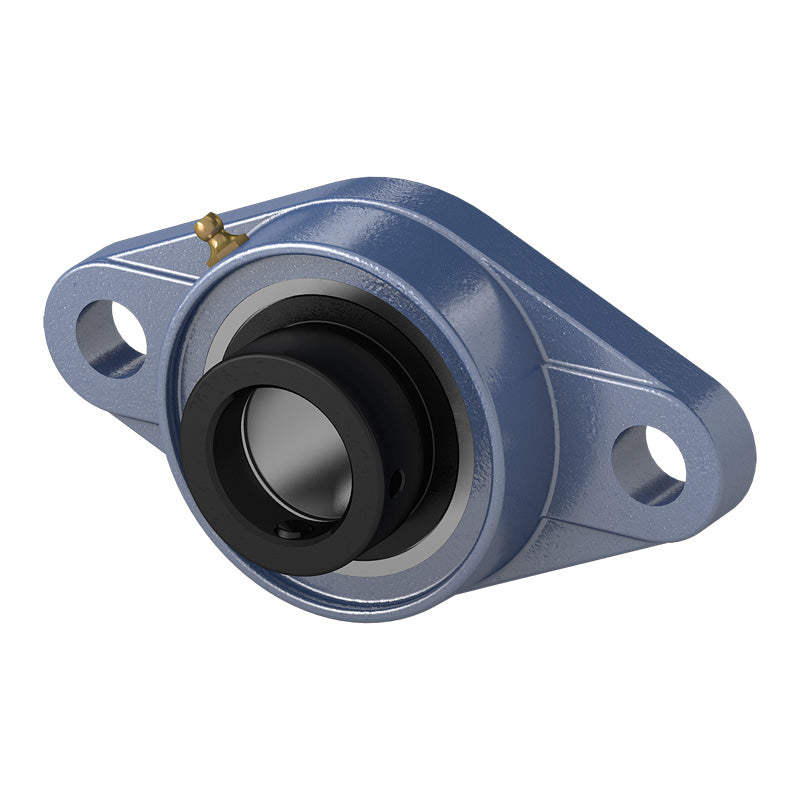

HCFL208-24 Imperial Two Bolt Cast Iron Oval Housing with 1-1/2 inch Eccentric Collar Insert
HCFL208-24 Imperial Two Bolt Cast Iron Oval Housing with 1-1/2 inch Eccentric Collar Insert
Regular price
$57.55
ex VAT
Regular price
Sale price
$57.55
ex VAT
In stock
Price Break
10+
$51.22
19+
$48.34
29+
$47.77
39+
$47.19
49+
$46.62
74+
$46.04
99+
$43.16
199+
$42.59
249+
$42.01
499+
$41.44
999+
$40.29
Couldn't load pickup availability
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- HCFL
- Bolt Hole Centres:
- 144.07mm = 5.672 (5-43/64) inch
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| a | 6-7/8 inch |
| e | 5-43/64 inch |
| i | 53/64 inch |
| g | 35/64 inch |
| l | 1-13/32 inch |
| s | 5/8 inch |
| b | 3-15/16 inch |
| z | 2-13/64 inch |
| B1 | 2.217 inch |
| n | 0.843 inch |
| Bolt size | 1/2 inch |
| Bearing no | HC208-24 |
| Housing no | FL208 |
| Weight | 1.6 kg |
