SKU: HCFL206

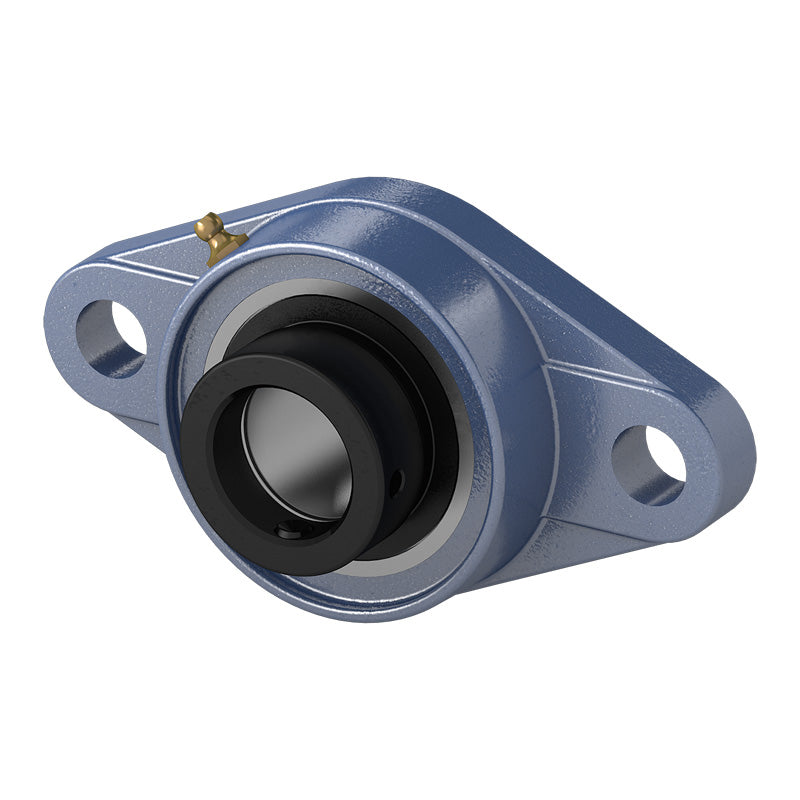

HCFL206 Metric Two Bolt Cast Iron Oval Housing with 30mm Eccentric Collar Insert
HCFL206 Metric Two Bolt Cast Iron Oval Housing with 30mm Eccentric Collar Insert
Regular price
$31.85
ex VAT
Regular price
Sale price
$31.85
ex VAT
In stock
Price Break
10+
$28.35
19+
$26.75
29+
$26.44
39+
$26.12
49+
$25.80
74+
$25.48
99+
$23.89
199+
$23.57
249+
$23.25
499+
$22.93
999+
$22.30
Couldn't load pickup availability
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- HCFL
- Bolt Hole Centres:
- 117mm
Technical
Technical
| d | 30mm |
|---|---|
| a | 148mm |
| e | 117mm |
| i | 18mm |
| g | 13mm |
| l | 31mm |
| s | 16mm |
| b | 80mm |
| z | 48.1mm |
| B1 | 48.4mm |
| n | 18.3mm |
| Bolt size | M14 |
| Bearing no | HC206 |
| Housing no | FL206 |
| Weight | 0.9 kg |
