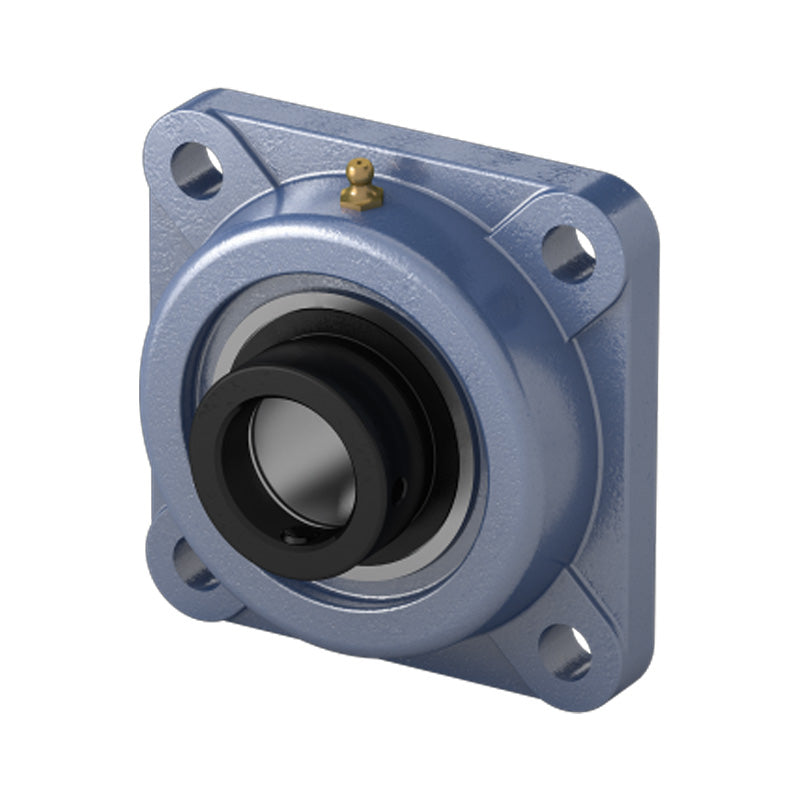

HCF209 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert
HCF209 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert
Regular price
$50.11
ex VAT
Regular price
Sale price
$50.11
ex VAT
In stock
Price Break
10+
$44.60
19+
$42.09
29+
$41.59
39+
$41.09
49+
$40.59
74+
$40.09
99+
$37.58
199+
$37.08
249+
$36.58
499+
$36.08
999+
$35.08
Couldn't load pickup availability
Description
Description
HCF200 Series Normal Duty 4 Bolt Square Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the square cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be fully removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- HCF
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 45mm |
|---|---|
| a | 137mm |
| e | 105mm |
| i | 22mm |
| g | 18mm |
| l | 38mm |
| S | 16mm |
| z | 56.9mm |
| Bi | 56.3mm |
| n | 21.4mm |
| Bolt size | M14 |
| Bearing | HC209 |
| Housing | F209 |
| Mass | 2.13 kg |
