SKU: HC212

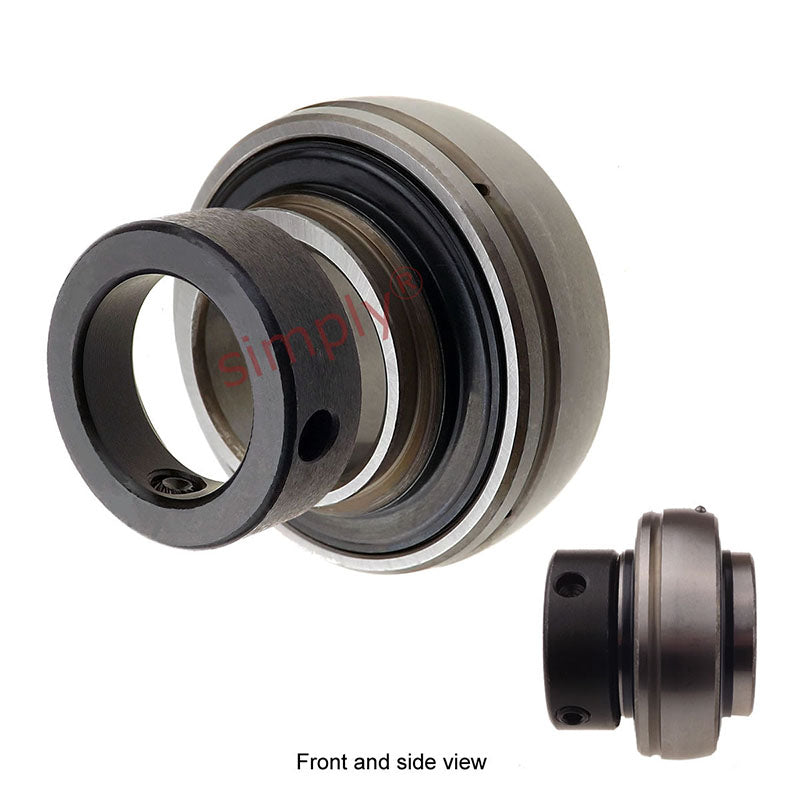

HC212 Eccentric Collar Full Width Insert 60mm Bore 110mm Outside Dia
HC212 Eccentric Collar Full Width Insert 60mm Bore 110mm Outside Dia
Regular price
$14.91
ex VAT
Regular price
Sale price
$14.91
ex VAT
Equivalent to: NA212
In stock
Price Break
3+
$7.04
4+
$6.64
9+
$6.57
19+
$6.49
49+
$6.41
99+
$6.33
499+
$5.93
999+
$5.85
1999+
$5.77
2999+
$5.70
4999+
$5.54
Share this product
Description
Description
|
HC or -- YEL or GE.. KRR Series Eccentric Collar Type Insert: Sealed full width bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
Equivalent: NA212
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- HC
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B1 | 77.8mm |
| B | 61.9mm |
| C | 27mm |
| s | 31mm |
| ds | M10x1 |
| G | 8mm |
| B5 | 22.3mm |
| d3 | 84.2mm |
| F | 7.6mm |
| Dynamic load | 4864 kgf |
| Static load | 3355 kgf |
| Weight | 1.88 kg |
