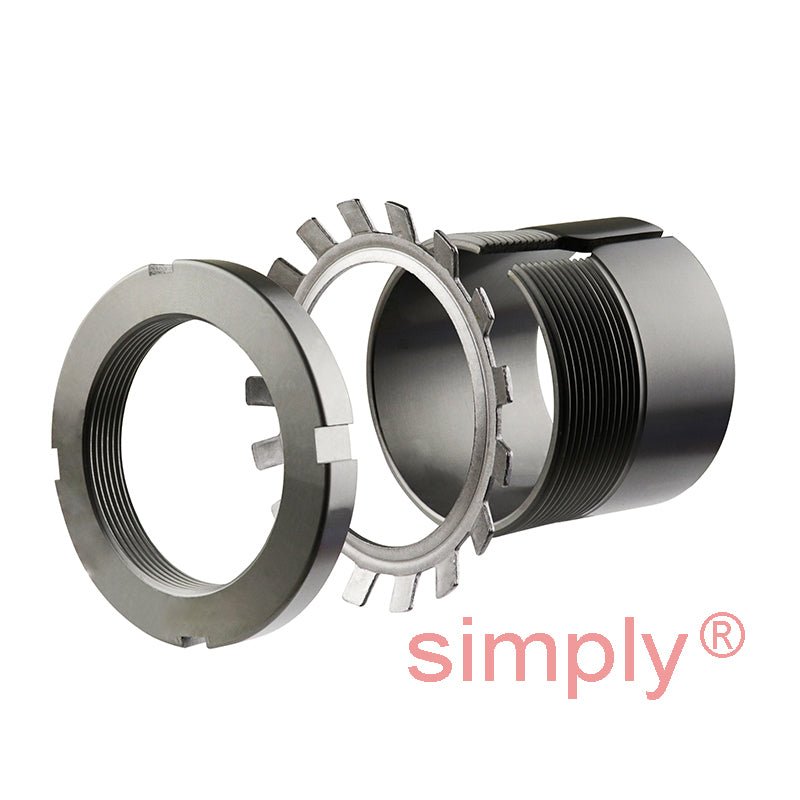

SKF H322 Adaptor Sleeve with Lock Nut and Locking Device for 100mm Shaft
SKF H322 Adaptor Sleeve with Lock Nut and Locking Device for 100mm Shaft
Regular price
$234.36
ex VAT
Regular price
Sale price
$234.36
ex VAT
In stock
Price Break
10+
$208.58
19+
$196.86
29+
$194.52
39+
$192.18
49+
$189.83
74+
$187.49
99+
$175.77
199+
$173.43
249+
$171.08
499+
$168.74
999+
$164.05
Couldn't load pickup availability
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 145mm
- Width:
- 77mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 100mm |
| d | 110mm |
| d3 | 145mm |
| B1 | 77mm |
| B2 | 21mm |
| G | Thread 110x2mm |
| Weight | 2.04 kg |
| --- | Assembly Parts |
| Sleeve | H322 |
| Nut | KM22 |
| Washer | MB22 |
| Hydraulic nut | HMV22E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2222K+taper+self+open>2222K</a> |
| --- | Matching Spherical Roller Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1322K+taper+self+open>1322K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23022K+taper>23022K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22222K+taper>22222K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21322K+taper>21322K</a> |
