SKU: H318E-SKF

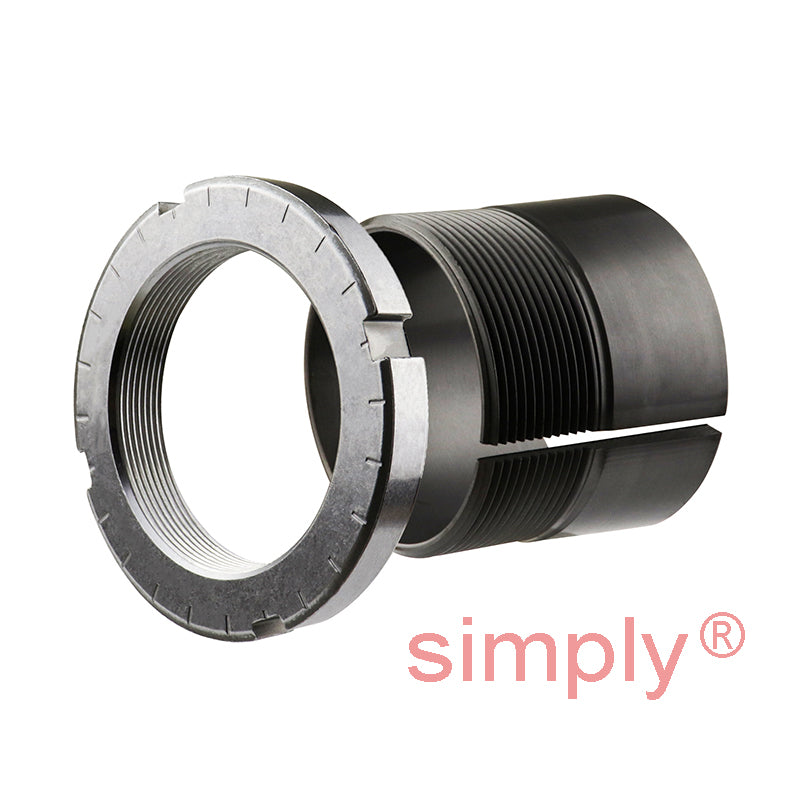

SKF H318E Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft
SKF H318E Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft
Regular price
$159.06
ex VAT
Regular price
Sale price
$159.06
ex VAT
In stock
Price Break
10+
$141.56
19+
$133.61
29+
$132.02
39+
$130.43
49+
$128.84
74+
$127.25
99+
$119.30
199+
$117.70
249+
$116.11
499+
$114.52
999+
$111.34
Couldn't load pickup availability
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 120mm
- Width:
- 65mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 80mm |
| d | 90mm |
| d3 | 120mm |
| B1 | 65mm |
| B2 | 19mm |
| G | Thread 90x2mm |
| Weight | 1.43 kg |
| --- | Assembly Parts |
| Sleeve | H318E |
| Nut | KMFE18 |
| Hydraulic nut | HMV18E |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2218K+taper>C2218K</a> |
