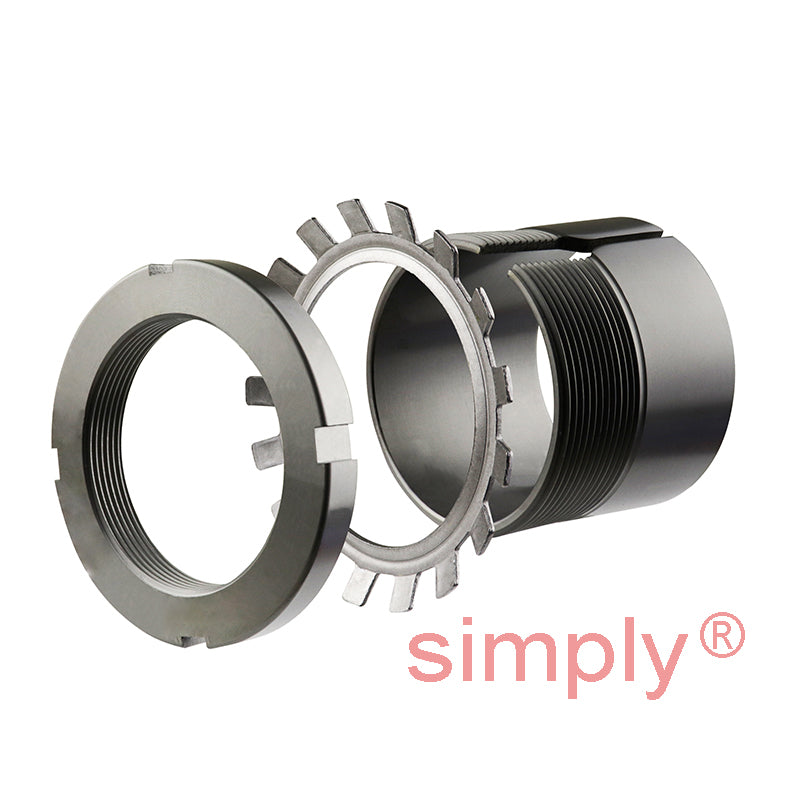

SKF H316 Adaptor Sleeve with Lock Nut and Locking Device for 70mm Shaft
SKF H316 Adaptor Sleeve with Lock Nut and Locking Device for 70mm Shaft
Regular price
$96.26
ex VAT
Regular price
Sale price
$96.26
ex VAT
In stock
Price Break
2+
$45.46
5+
$42.91
10+
$42.40
20+
$41.89
49+
$41.37
74+
$40.86
99+
$38.31
199+
$37.80
249+
$37.29
499+
$36.78
999+
$35.76
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 105mm
- Width:
- 59mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 70mm |
| d | 80mm |
| d3 | 105mm |
| B1 | 59mm |
| B2 | 17mm |
| G | Thread 80x2mm |
| Weight | 0.95 kg |
| --- | Assembly Parts |
| Sleeve | H316 |
| Nut | KM16 |
| Washer | MB16 |
| Hydraulic nut | HMV16E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2216K+taper+self+open>2216K</a> |
| --- | Matching Spherical Roller Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1316K+taper+self+open>1316K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22216K+taper>22216K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21316K+taper>21316K</a> |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2216K+taper>C2216K</a> |
