SKU: H313E-SKF

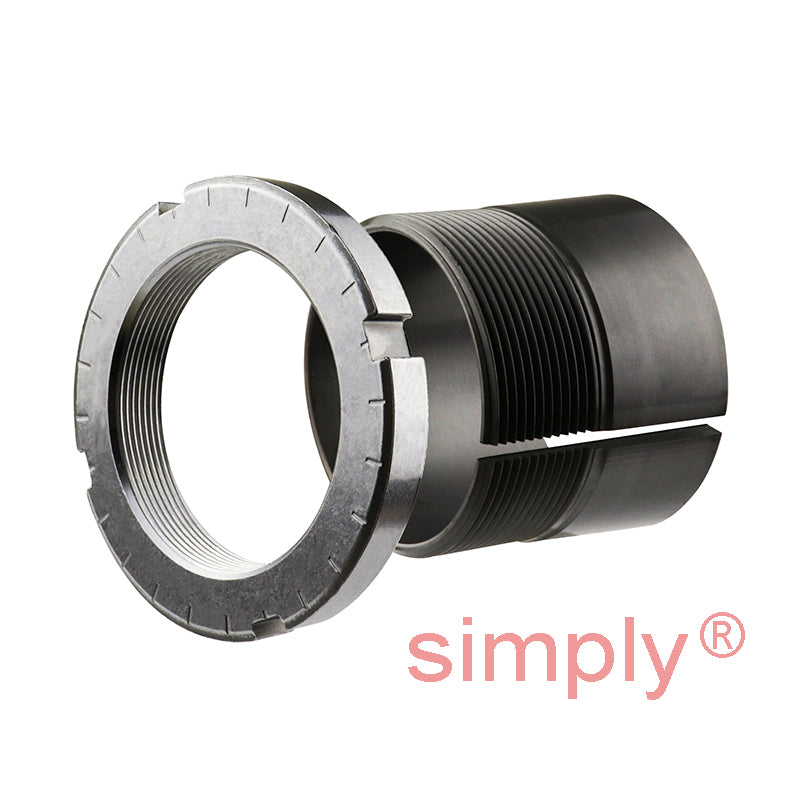

SKF H313E Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
SKF H313E Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
Regular price
$105.81
ex VAT
Regular price
Sale price
$105.81
ex VAT
In stock
Price Break
10+
$94.17
19+
$88.88
29+
$87.82
39+
$86.76
49+
$85.71
74+
$84.65
99+
$79.36
199+
$78.30
249+
$77.24
499+
$76.18
999+
$74.07
Couldn't load pickup availability
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 50mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 60mm |
| d | 65mm |
| d3 | 85mm |
| B1 | 50mm |
| B2 | 15mm |
| G | Thread 65x2mm |
| Weight | 0.43 kg |
| --- | Assembly Parts |
| Sleeve | H313E |
| Nut | KMFE13 |
| Hydraulic nut | HMV13E |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2213KTN9+taper>C2213KTN9</a> |
