SKU: H313C-SKF

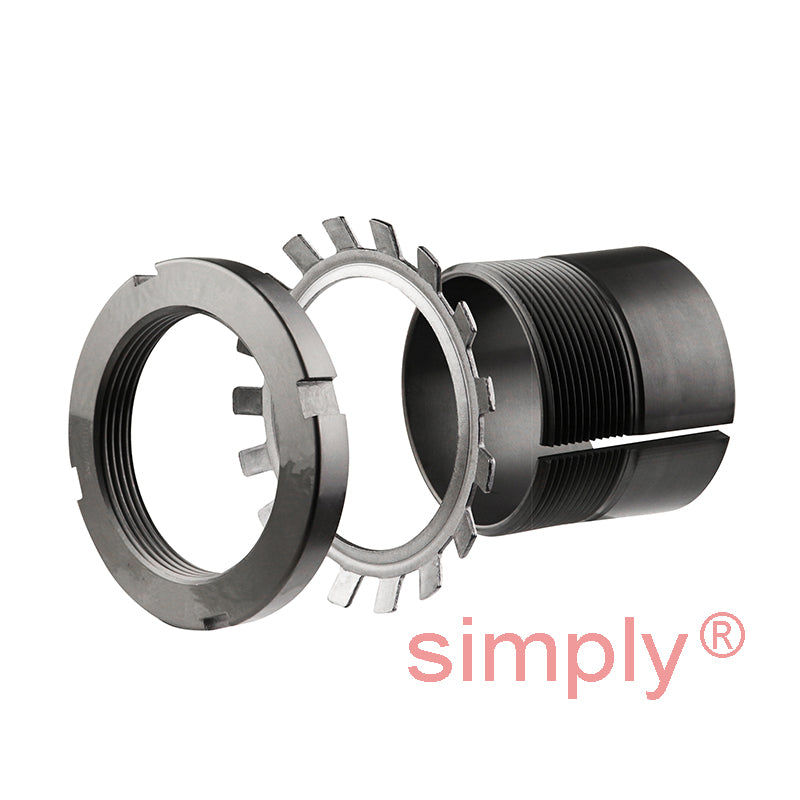

SKF H313C Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
SKF H313C Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
Regular price
$170.44
ex VAT
Regular price
Sale price
$170.44
ex VAT
In stock
Price Break
10+
$151.69
19+
$143.17
29+
$141.47
39+
$139.76
49+
$138.06
74+
$136.35
99+
$127.83
199+
$126.13
249+
$124.42
499+
$122.72
999+
$119.31
Couldn't load pickup availability
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 50mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 60mm |
| d | 65mm |
| d3 | 85mm |
| B1 | 50mm |
| B2 | 14.5mm |
| G | Thread 65x2mm |
| Weight | 0.42 kg |
| --- | Assembly Parts |
| Sleeve | H313C |
| Nut | KM13 |
| Washer | MB13C |
| Hydraulic nut | HMV13E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22213K-2RS+taper>22213K-2RS</a> |
