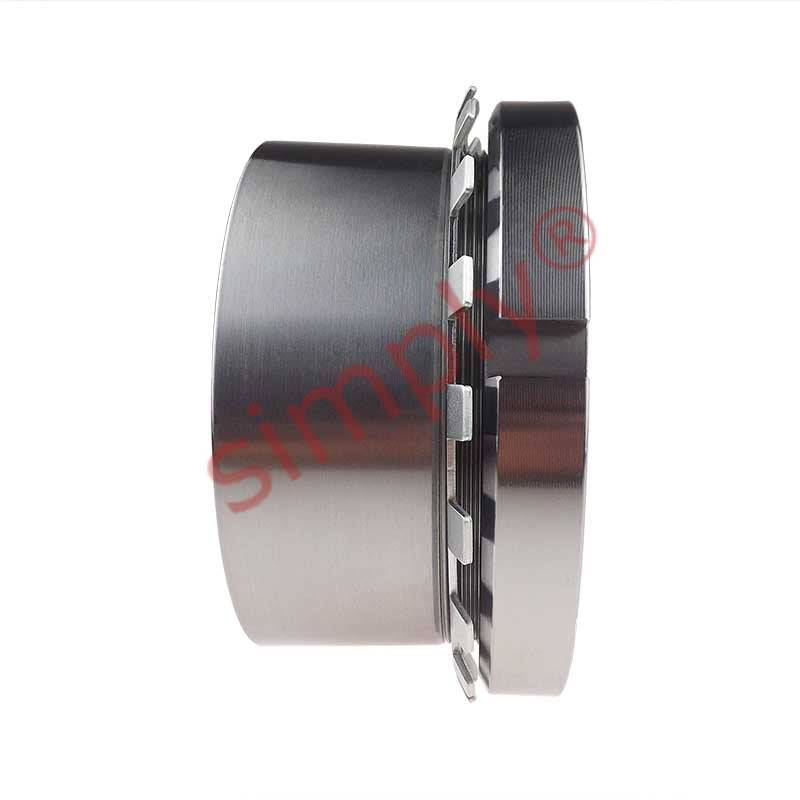

FAG H313 Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
FAG H313 Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
Regular price
$47.94
ex VAT
Regular price
Sale price
$47.94
ex VAT
In stock
Price Break
10+
$22.64
19+
$21.37
29+
$21.12
39+
$20.86
49+
$20.61
74+
$20.35
99+
$19.08
199+
$18.83
249+
$18.57
499+
$18.32
999+
$17.81
Share this product
Description
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 50mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 60mm |
| d | 65mm |
| d3 | 85mm |
| B1 | 50mm |
| B2 | 13.5mm |
| G | Thread 65x2mm |
| Weight | 0.443 kg |

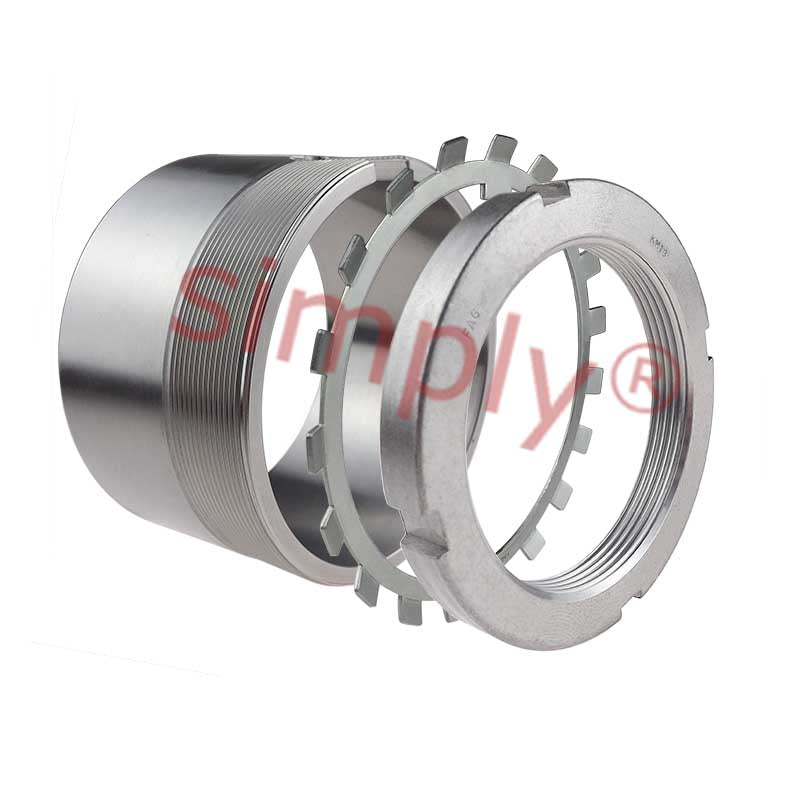

| --- | Assembly Parts |
| Sleeve | H313 |
| Nut | KM13 |
| Washer | MB13 |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2213K+taper+self+open>2213K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1313K+taper+self+open>1313K</a> |
| --- | Matching Spherical Roller Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22213K+taper>22213K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21213K+taper>21213K</a> |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2213K+taper>C2213K</a> |
