• RHP H308 Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft
1 1

SKU: H308.RHP

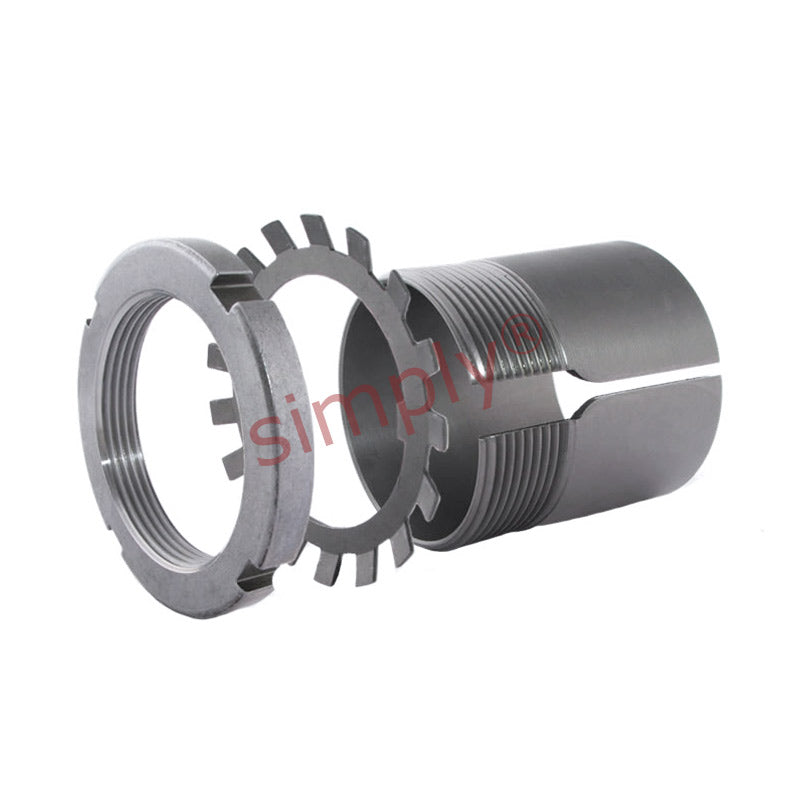

RHP H308 Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft

RHP H308 Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft
$14.72 ex VAT
$14.72 ex VAT
Sale Sold out

In stock

Price Break
10+ $6.95
20+ $6.56
30+ $6.48
40+ $6.40
50+ $6.33
75+ $6.25
100+ $5.86
200+ $5.78
250+ $5.70
500+ $5.62
1000+ $5.47
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Technical
--- Dimensions
d1 35mm
d 40mm
d3 58mm
B1 36mm
B2 10mm
G Thread 40x1.5mm
Weight 0.17 kg
--- Assembly Parts
Sleeve H308
Nut KM8
Washer MB8
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2208K+taper+self+open>2208K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1308K+taper+self+open>1308K</a>
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22208K+taper>22208K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21308K+taper>21308K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2208K+taper>C2208K</a>
