SKU: H2338-SKF

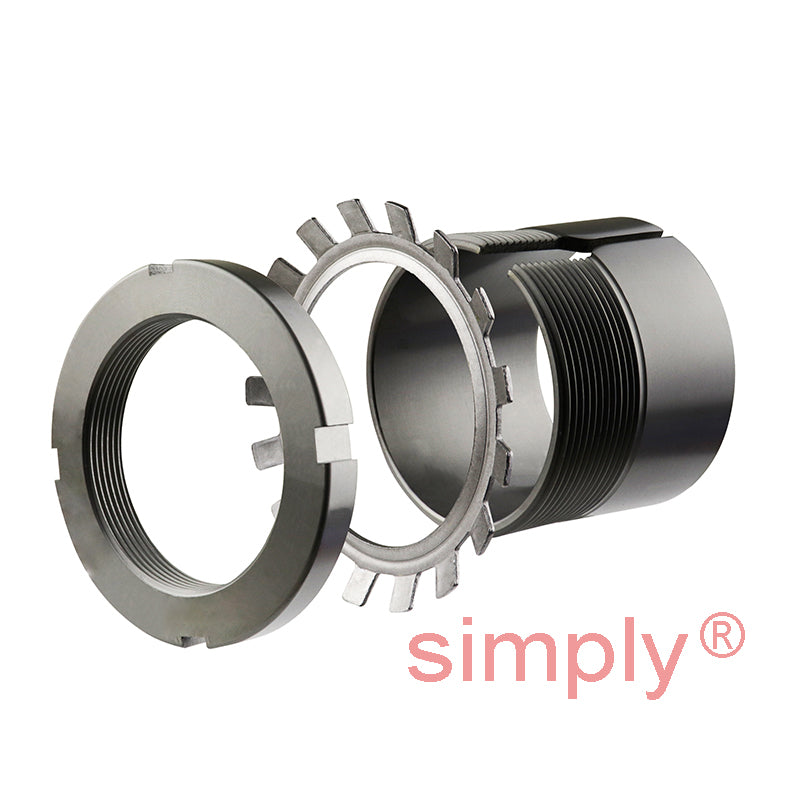

SKF H2338 Adaptor Sleeve with Lock Nut and Locking Device for 170mm Shaft
SKF H2338 Adaptor Sleeve with Lock Nut and Locking Device for 170mm Shaft
Regular price
$1,425.49
ex VAT
Regular price
Sale price
$1,425.49
ex VAT
In stock
Price Break
10+
$1,268.69
19+
$1,197.41
29+
$1,183.16
39+
$1,168.90
49+
$1,154.65
74+
$1,140.39
99+
$1,069.12
199+
$1,054.86
249+
$1,040.61
499+
$1,026.35
999+
$997.84
Couldn't load pickup availability
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 170mm
- Outside Diameter:
- 240mm
- Width:
- 169mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 170mm |
| d | 190mm |
| d3 | 240mm |
| B1 | 169mm |
| B2 | 30.5mm |
| G | Thread 190x3mm |
| Weight | 12 kg |
| --- | Assembly Parts |
| Sleeve | H2338 |
| Nut | KM38 |
| Washer | MB38 |
| Hydraulic nut | HMV38E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23238K+taper>23238K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22338K+taper>22338K</a> |
